SY is a large-scale 2.5T Hydraulic Hand Pallet Truck manufacturer and supplier in China.We have been specialized in Cargo handling equipment for many years.As a factory,the price advantage, OEM&ODM capability,strict quality control system and good sales-after service bring us so many clients all over the world.We look forward to becoming your long-term partner in China.

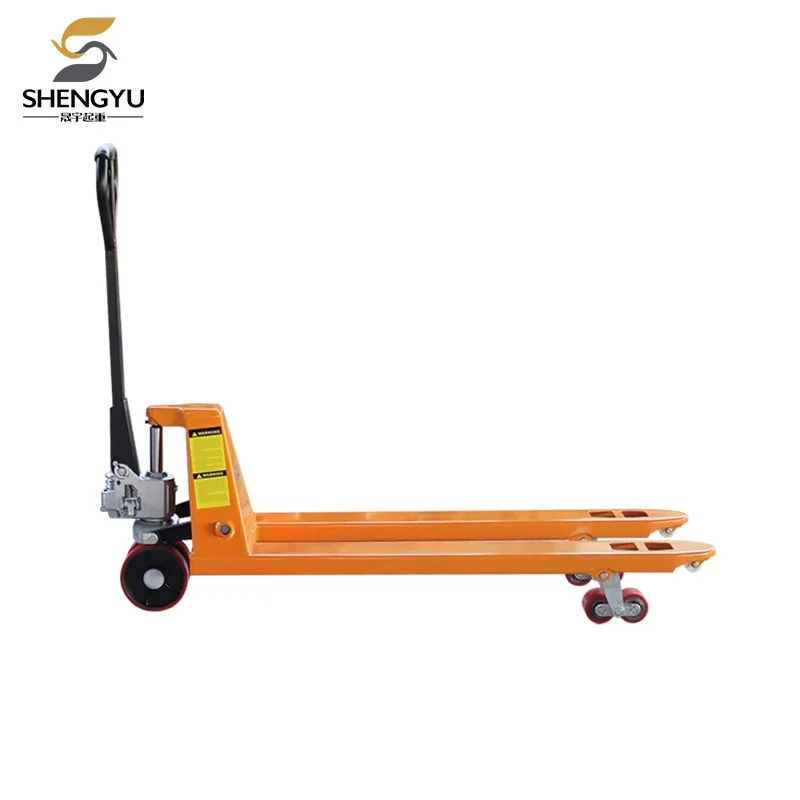

SY Hydraulic Hand Pallet Trucks are the cost-effective equipment for many short distance transport tasks. Widely used in supermarkets,warehouses, factories,logistics industries etc. We have the right model to meet all your needs.
The rated load capacity of 2.5T Hydraulic Hand Pallet Trucks is 2.5ton(2500kg).
* Rubber coated handle
* Simple three-speed control handle
* Integrated casting pump,return oil device and safety relief valve.
* Highly balanced reinforced frame
* Controllable descent speed,slow descent
* Optional wheels:nylon wheel,polyurethane(PU) wheel,steel wheel
* Special requirements can be negotiated and met
* 5000 lifts without deformation under rated load
Model |
SY-2T |
SY-2.5T |
SY-3T |
SY-5T |
Rated Load (kg) |
2000 |
2500 |
3000 |
5000 |
Min. Height (mm) |
85 |
85 |
85 |
90 |
Max. Lifting Height (mm) |
200 |
200 |
200 |
200 |
Steering Wheels (mm) |
180*50 |
180*50 |
180*50 |
180*50 |
Fork Wheels (mm) |
80*70 |
80*70 |
80*70 |
80*68 |
Overall Height (mm) |
1220 |
1220 |
1220 |
1240 |
Overall Length (mm) |
1560 |
1560 |
1560 |
1600 |
Nominal Length (mm) |
1200 |
1200 |
1200 |
1200 |
Nominal Width (mm) |
550/685 |
550/685 |
685 |
|
Fork Size W*H |
160/55 |
160/65 |
160/65 |
180/65 |
Wheels Material |
Nylon/PU |
Nylon/PU |
Nylon/PU |
Nylon/PU |
