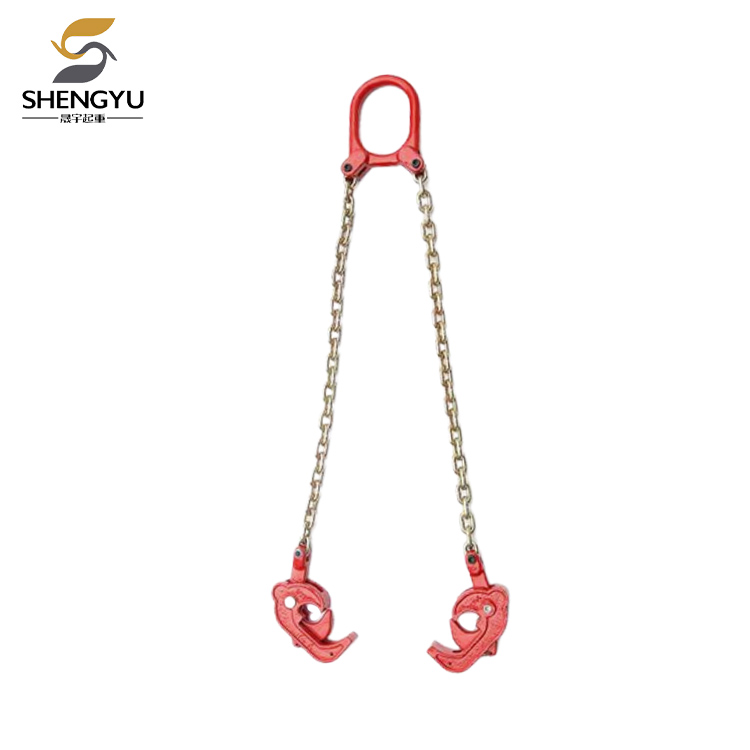

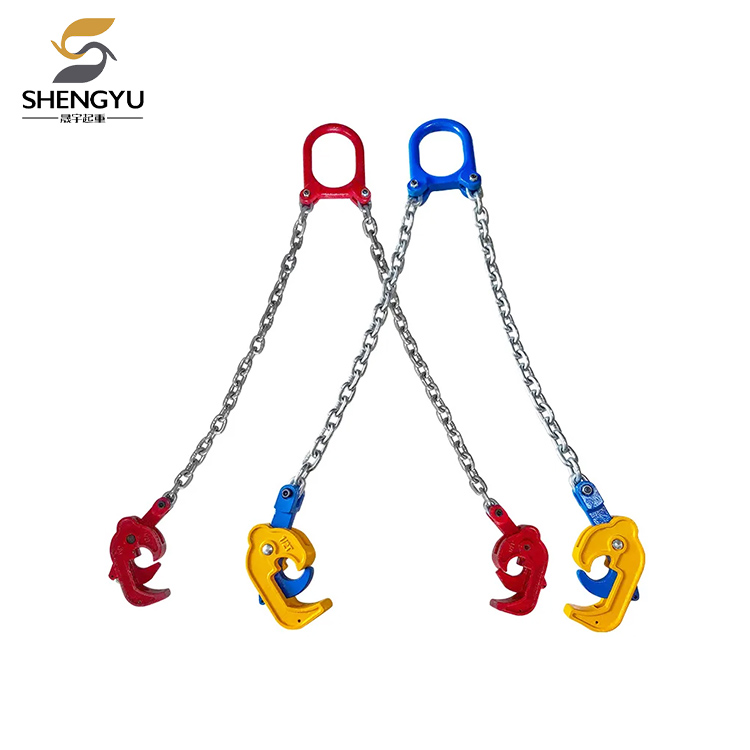

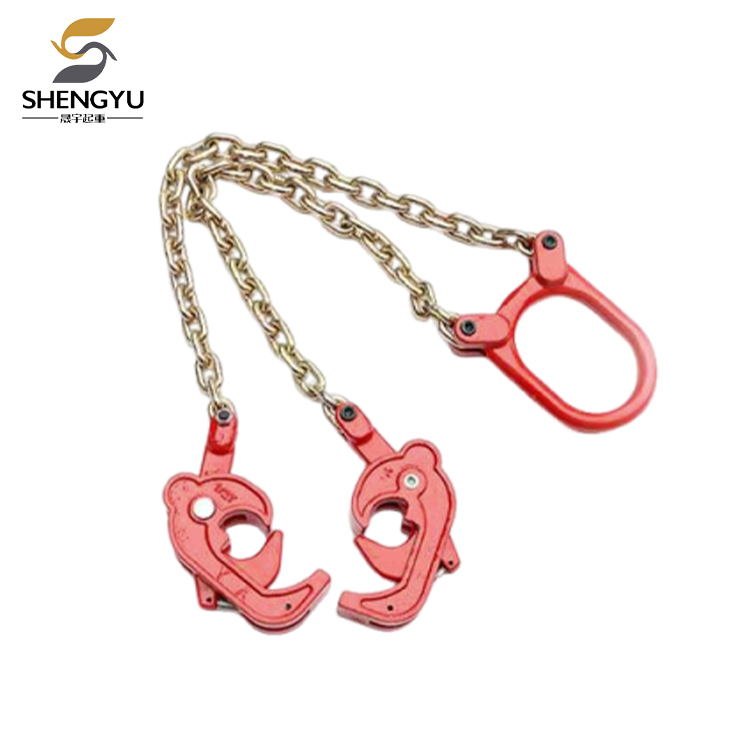

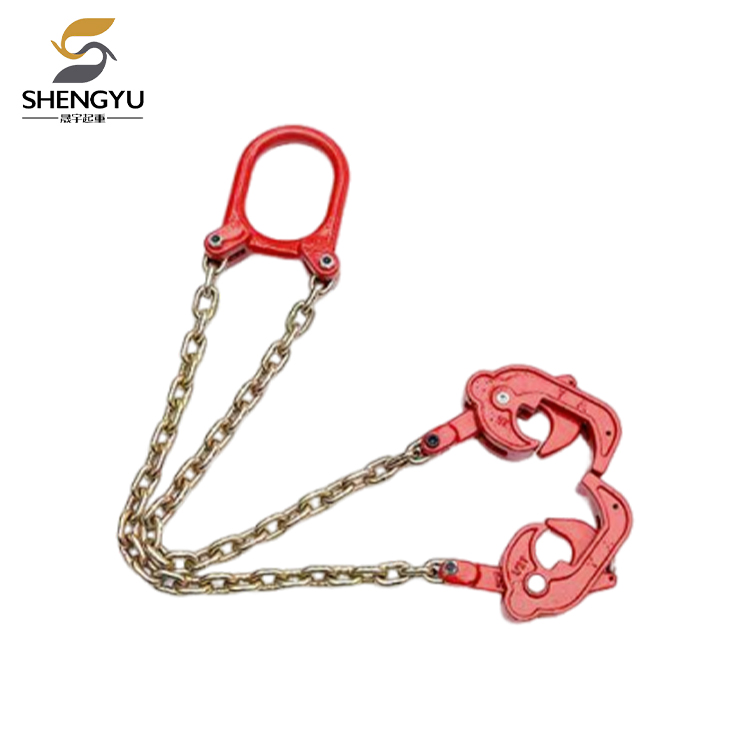

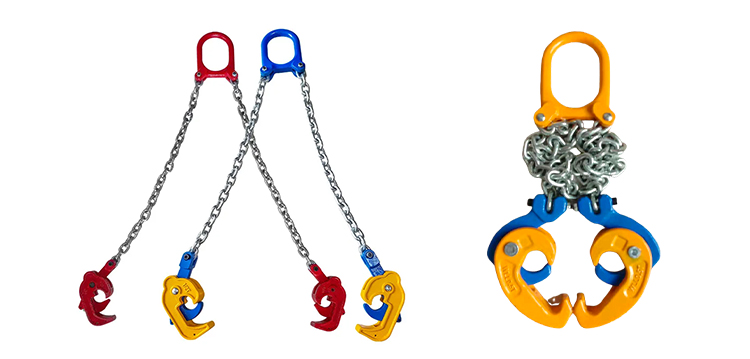

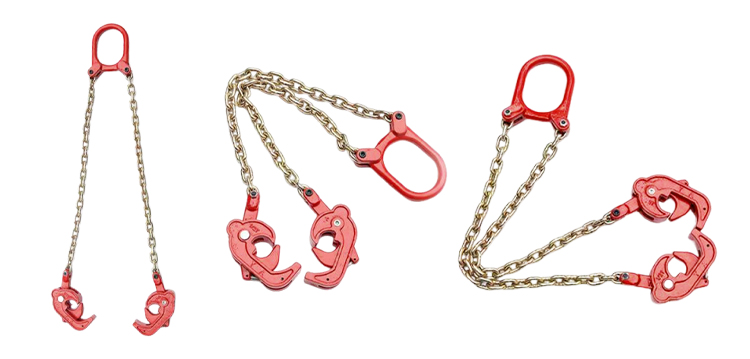

Chain Drum Lifter

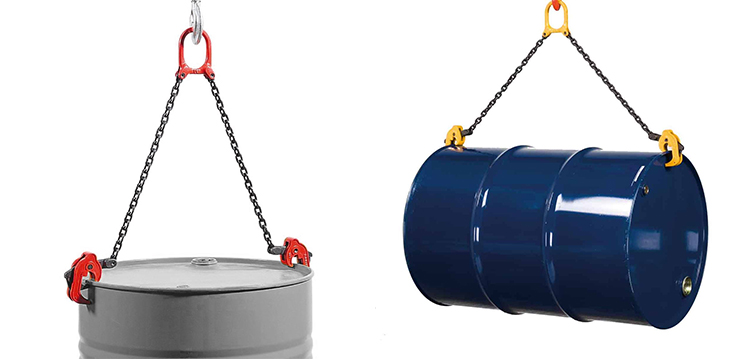

Chain drum lifter is a kind of lifting tool specially used for lifting all kinds of oil drum with rolled edge, which is widely used in machinery manufacturing, port loading and unloading, shipbuilding, electric power installation, aerospace and other fields.Adopts two lifting pliers and lifting chain combination, by clamping the two ends of the oil drum roll edge to achieve safe and stable lifting.

Product Features

Material and process

Alloy material: The clamp of the chain drum lifter is made of alloy and can stably hold heavy goods without being deformed.

Heat-treatment chain: The chain has been heat-treated;it is wear-resistant, has high tensile strength, and does not break for a long time.

Design Advantage

Double-chain structure: The two chains distribute the pressure, the single chain will not overload, and it is safer to lift.

Adjustable chuck: The width of the pliers can be adjusted, and the oil drums of various sizes can be clamped, and the versatility is strong.

Safety Performance

Compliance with standards: The chain drum lifter has passed ISO, CE and other international safety certifications and has strict quality control, so you can rest assured.

Matters Needing Attention:

1. Fill each moving part with a little light mechanical lubricating oil to ensure the safe and reliable operation of each part.

2. Make sure that the weight of the oil drum and the materials contained in it is not greater than the load of the oil drum sling.

3.When lifting oil drum materials,the lifting should be stable and not too fast.During the lifting process, it should not collide with other objects.

4. When you put down the oil drum, it should be gently placed to avoid damage to the oil drum.

5. While lifting and lowering the oil drum, you must ensure that the lifting tool takes off and lands vertically.

Our factory produces chain-type oil drum lifting devices with stable production. Before shipment, batch load tests are completed for each batch. We also support non-standard customization. Worn parts can be supplied separately. This provides a durable and reliable solution for your large-scale drum transportation projects. If you want to know more about the chain drum lifters or have questions regarding specifications selection or bulk purchasing, please feel free to contact the sales team at sherry@syhoist.com.

FAQ：

Q1: What lifting equipment can the chain drum lifter work with?

A1: It can be matched with chain hoists, electric hoists, small cranes and other lifting devices for hoisting drums.

Q2: Can this chain drum lifter handle different sizes of steel drums?

A2: Standard models fit common 200L metal drums. Custom versions are available for non-standard drum diameters and heights.

Q3: Is spare parts supply available for this drum lifter?

A3: Yes. Wearing components such as chains and shackles can be supplied separately for replacement.

Q4: What pre-shipment tests will be conducted on the chain drum lifter?

A4: Every batch will undergo load testing before delivery to verify structural performance.

Q5: What is the proper storage method when the chain drum lifter is not in use?

A5: Store it in a dry and ventilated area, away from corrosive substances to reduce chain and metal component aging.
