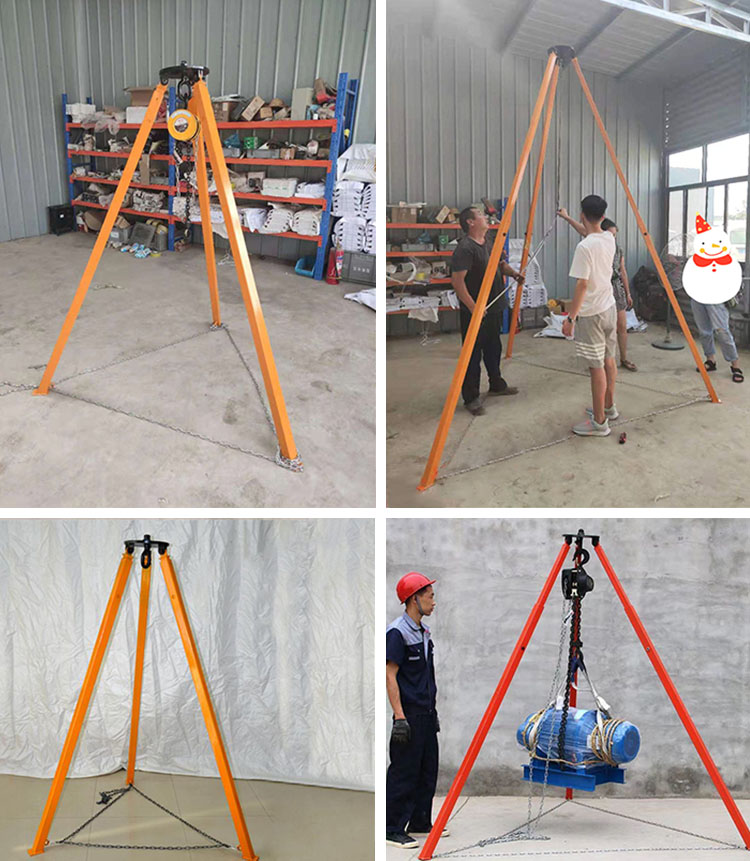

Hebei Shengyu Manufacturing Factory specializes in manufacturing various specifications of crane tripods. The tripods have strong versatility and are suitable for a wide range of scenarios. The overall product is reliable in bearing capacity, has a compact and small structure, is easy to install and operate, and can not only improve work efficiency but also facilitate transportation and storage. It is a practical and useful equipment for on-site lifting, maintenance, rescue and other operations.

Send Inquiry

Product Description

The crane tripods produced by Shengyu Company currently have four commonly used load-bearing models: 1 ton, 2 tons, 3 tons and 5 tons. They can meet the needs of various lifting operations. The height of the support legs can be adjusted freely, allowing users to flexibly adjust the height of the column according to the on-site space and operation height, thus adapting to various complex sites.

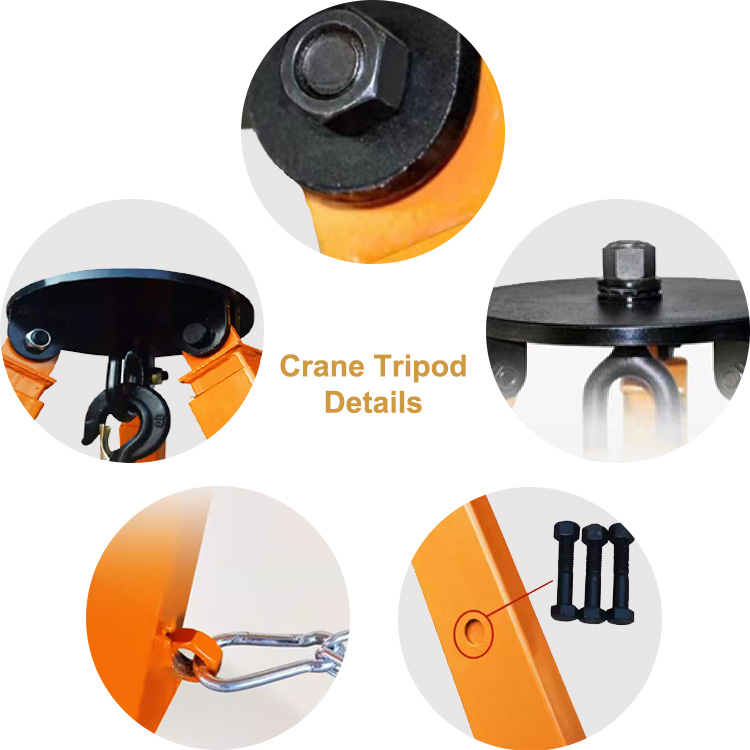

Crane Tripod Product Details

1. Large Nut: Uses thickened and enlarged nuts for reliable and secure connection to the bracket.

2. Loading Disc: Manganese steel cast loading disc with high load-bearing capacity, resistant to deformation and breakage.

3. Pressure Bearing: High-load-bearing pressure bearing.

4. Fixed Through-Hole: Achieves higher lifting height through lifting fixation.

5. Chain Retraction Lifting Ring: Secure and stable for safe use.

6. Hoist Installation: No power required, no jamming, easy to operate.

Rescue Crane Tripod

Parameter

Stand Specification
Min. Overall Length
Min. Leg Length
Max. Leg Length
Number of Sections
Square Tube Outer Dimension
1 Ton, 3 Meters
193cm
185cm
300cm
2 Sections
5 × 5 cm
1 Ton, 4 Meters
245cm
232cm
400cm
2 Sections
5 × 5 cm
2 Ton, 3 Meters
193cm
173cm
300cm
2 Sections
5 × 7 cm
2 Ton, 4 Meters
245cm
228cm
400cm
2 Sections
5 × 7 cm
3 Ton, 3 Meters
/
/
300cm
3 Sections
6 × 8 cm
3 Ton, 4 Meters
170cm
153cm
400cm
3 Sections
6 × 8 cm
3 Ton, 5 Meters
/
300cm
500cm
2 Sections
6 × 8 cm
5 Ton, 3 Meters
326cm
305cm
300cm
1 Section
76mm


Product Advantages

1. This Crane Tripod's outriggers are made of thickened carbon steel, treated with high-temperature quenching and powder coating, resulting in excellent sturdiness, strong wear resistance, and high load-bearing capacity.

2. The overall design is reasonable, with a strong triangular support that is also telescopic and height-adjustable. The support is also foldable, saving space and making it convenient for both outdoor and indoor use.

3. Crane Tripod uses only the highest quality accessories, including large nuts, universal swivel eyelets, hooks, and other lifting components that are durable and wear-resistant.

4.It used with various lifting hoists, such as manual chain hoists, electric hoists, and hand winches.


Crane tripods serve as modular anchoring frames designed to pair seamlessly with manual chain hoists, electric chain hoists and hand winches; each unit is assembled from three independently telescopic legs, a load-bearing top head and locking pins, with full production batches subjected to static load testing before delivery to meet international lifting compliance standards, and users should match rated capacity and adjustable height based on on-site load data, carry out pre-use visual checks on pins, leg tubes and connection points, plus scheduled professional inspections every 12 months, while proper storage in dry areas can reduce metal fatigue and extend service life, and we also provide customizable leg lengths and optional accessories such as reinforced shackles and anti-slip foot pads upon request.

Application scenarios

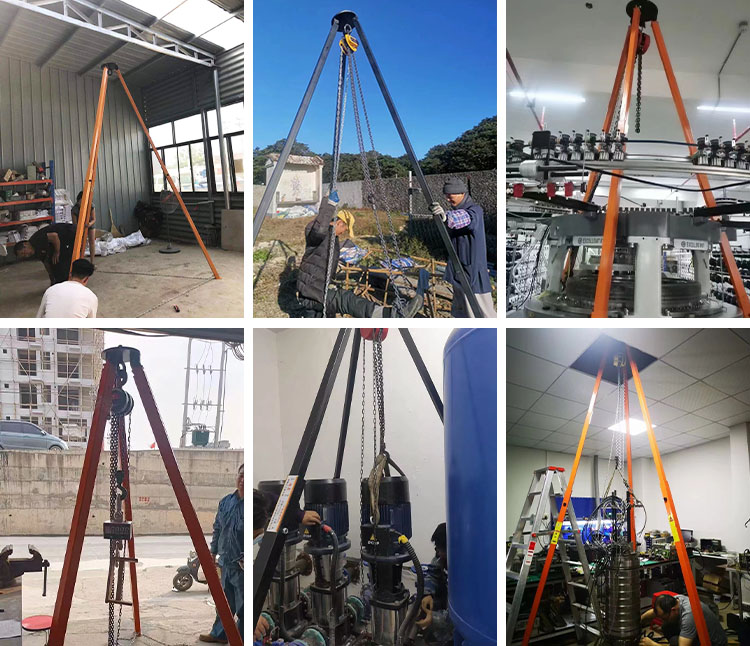

Crane tripods are suitable for various environments, including warehouses, workshops, emergency rescue at wellheads, wellhead hoisting, power construction, factory loading and unloading, construction, and auto repair shops.

Crane Tripods

Hebei Shengyu Crane tripods are widely used in various industries and environments. Their simple assembly and the elimination of the need for drilling holes in the ground have won them widespread popularity. For high-quality, reliable tripods, Hebei Shengyu is the right choice.



FAQ

Q1: What lifting tools can be used together with the crane tripod?

A1: It can cooperate with manual chain hoists, electric chain hoists and hand winches for lifting work.


Q2: Can the height of the crane tripod be adjusted?

A2: Yes. Each leg is telescopic with locking pins to adjust working height to fit different site conditions.


Q3: Can the crane tripod be used on uneven ground?

A3: It can adapt to slightly uneven ground after separate adjustment of three legs. Ensure all feet are placed firmly without sliding.


Q4: Do you support customized specifications for crane tripods?

A4: Custom leg lengths and load capacities are available for special working scenarios upon request.


Q5: What tests are carried out before shipment?

A5: Every batch will complete static load testing to meet international lifting equipment standards before delivery.


Q6: How should we store the crane tripod when not in use?

A6: Keep it in dry and ventilated storage space, avoid corrosive environment
