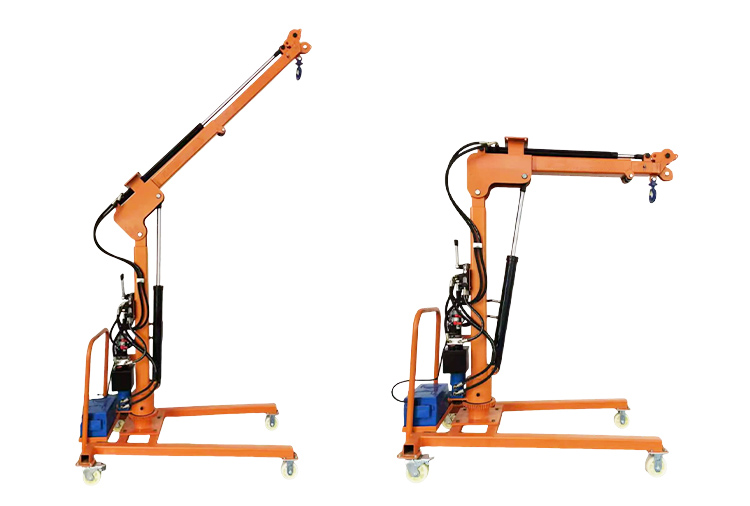

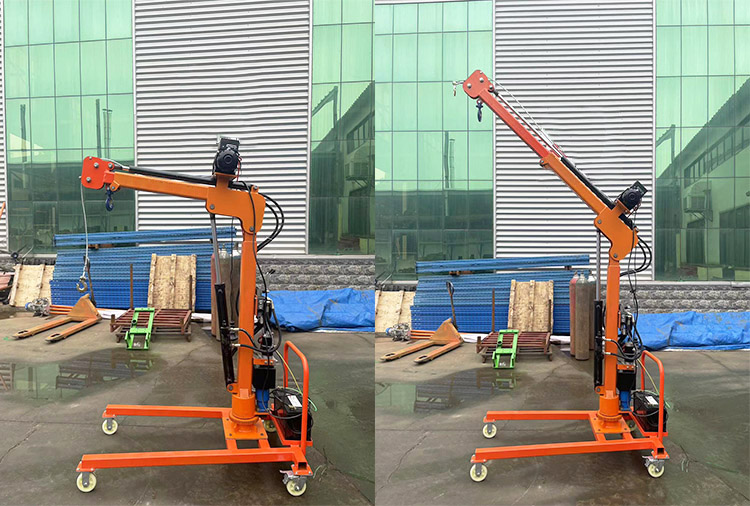

Electric Hydraulic Vehicle Mounted Crane
An electric hydraulic truck mounted crane is a lifting and handling equipment specifically designed for installation on vehicles. It uses an electric hydraulic drive system. The cranes manufactured by Shengyu are ideal for material handling, equipment installation and various mobile lifting applications.
Send Inquiry
Product Description
Key Features
Electric Hydraulic Drive System
This electric hydraulic truck mounted crane operates smoothly.Easy to operate,The lifting height and lifting capacity can be adjusted according to work requirements.
Telescopic Boom Design
The telescopic arm allows for flexible adjustment of the working radius.Improve efficiency under different operating conditions.
Multiple Rotation Options
Supports multiple rotation modes,To meet different operational needs.
Dual Control Modes
Equipped with a manual control lever and a wireless remote control,Flexible operation、Convenient and safe.
Robust and Durable Structure
Made with high-quality materials,The structure is sturdy,Long service life.
Operating Guidelines
Ensure theelectric hydraulic truck mounted crane is properly installed and securely fixed before use.
Check that the power cable and hydraulic hoses are firmly connected and that the hydraulic oil level is sufficient.
Adjust the boom length and angle as required, keeping the telescopic stroke within the specified range.
Operate the crane using the manual control lever or the wireless remote control to perform lifting and handling tasks.
Always monitor the load weight and center of gravity to ensure safe operation.
After operation, switch off the power and perform routine cleaning and maintenance.
Safety Precautions
Do not operate the electric hydraulic truck mounted crane unless it is securely fixed to the vehicle.
Never exceed the rated lifting capacity or maximum lifting height.
Only vertical lifting is permitted; diagonal pulling, dragging, or rotating loads is strictly prohibited.
The vehicle must remain stationary during lifting operations. The crane must be fully retracted before vehicle movement and used in conjunction with a mobile cart when required.
To ensure safe operation,Lower the winch wire rope before extending the boom.Do not use the crane in humid, corrosive, or high-temperature environments.If any faults or abnormalities are found,Please stop using the equipment immediately and contact the after-sales service department for inspection and repair.
Product Parameters
|
Parameter |
Numeric |
Parameter |
Numeric |
|
Lifting weight |
200--1000 KG500-2000KG |
Rated Power |
1.2kw 220V2.2kw 2Ton 2.2KW |
|
Lifting weight |
3m(Including car) 3.7m(3-section boom) |
Power cord requirements |
16 square meters or more copper wire with in 3 meters |
|
Boom length |
1.26--2-2.75m(3-sectionboom) |
Hydraulic oil |
46# anti-wear hydraulic oil |
|
Number of booms |
Standard 2 sections,Optional 3sections |
Fuel tank capacity |
3L |
|
Retracted height |
Main frame 1.55m includingtrolley 1.76m |
Installation |
Vehicle-mounted installation + use with a small car |
|
Luffing angle |
0--140℃ |
Trolley height |
22cm Handrail 88cm |
|
Telescopic stroke |
75cm (two hydraulic,three manualarms) |
Trolley length |
155cm |
|
Rotation method |
Standard manual High-end electrichydraulic |
Width of trolley |
Inner width 60cm Outer width 85cm |
|
How to operate |
Manual operating lever,wireless Siamese control |
Arm size |
90℃ 2 sections 60cm 3 sections130cm |
|
Lifting speed |
50s/one-way ascent,35s/one-waydescent |
Wheel Model |
5-inch directional 2+ 5-inch Wanfeng 2 |
|
Retracting speed |
25s/one way out, 13s/one way in |
Walking style |
Hand push type Electric type(non-rotating) |
|
Supply voltage |
12V、24V、48V、220V |
Car Type |
Ordinary type,Heavy type,Optional side out riggers |
|
BatteryModel |
12V 105AH 48V 20AH |
Crane dead weight |
1T 150KG 2T 280KG (Bare machine weight beforepacking） |
