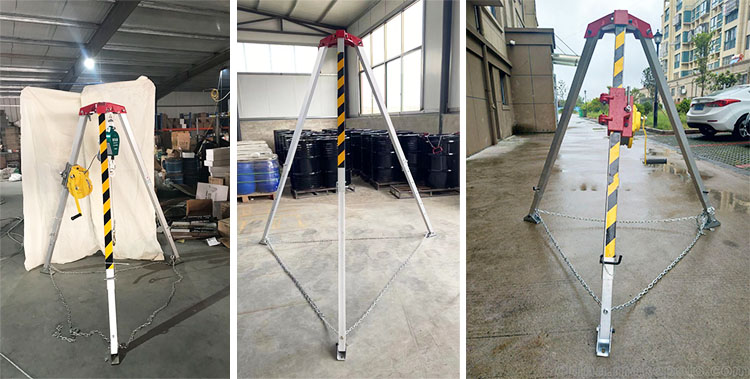

Electric Rescue Tripod

Core parameters

Load capacity and strength are the core safety parameters of electric rescue tripods. This product boasts robust and reliable specifications, comprehensively strengthening the safety defense line for rescue operations.

The standard rated load is ≥150kg, with optional 200kg, 300kg, and 500kg models available. It can be paired with various models of mini electric hoists with a rated load ≤1.6KN, easily meeting the needs of personnel transfer and material lifting in various scenarios.

The product has a safety factor >10 and a breaking force of 22kN. After a strength test of 3 times the rated load, it shows no deformation or damage, demonstrating stable and reliable operation.

Component strength is also maximized. The protective chain breaking strength is ≥3 times the rated load, and the wire rope diameter is ≥4mm with a breaking strength ≥5 times the rated load, combining high flexibility with strong corrosion resistance.

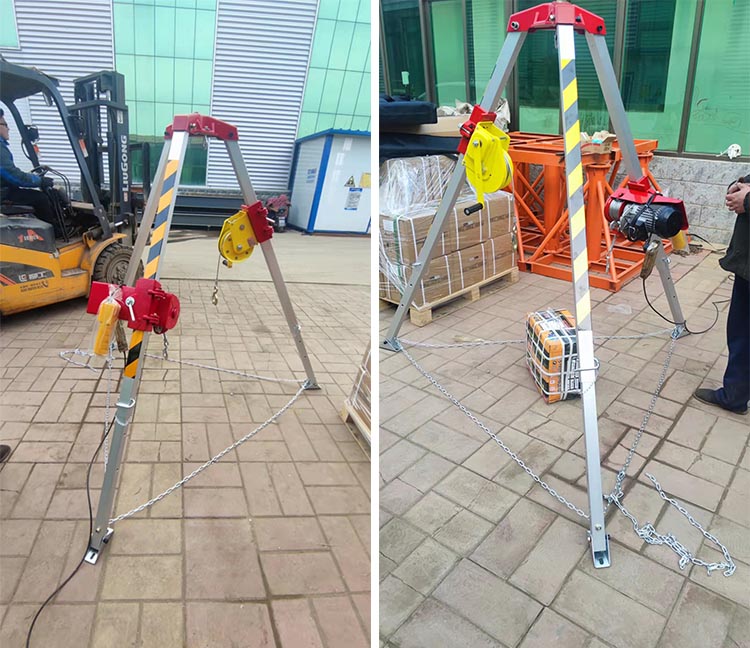

The electric rescue tripod can be equipped with various lifting hoists, and can be matched arbitrarily according to the on-site usage.

Structure and Dimensions

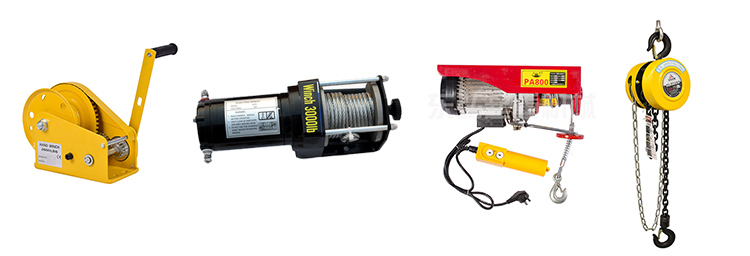

Introduction to the core performance of the lifting device of the electric rescue tripod

- Manual winch: Smooth and seamless operation without any jamming or stuck issues. The manual control is moderate and not strenuous. No external power supply is required throughout the process. The single person is capable of lifting heavy objects independently and smoothly. Is equipped with an accurate self-locking device. Once the operation is stopped, it will automatically lock to prevent the heavy object from falling accidentally, ensuring safety during the operation.

- Battery-powered electric winch: With a 12V/24V DC lithium battery drive system, the lifting operation is highly efficient and effortless, with a flexible and precise control feel.

-Small electric hoist: The structure is compact and the size is small. The rescue tripod is compatible with traditional two-phase voltages. The lifting action is rapid and efficient. The operation threshold is low and it is easy to master. The carrying performance is stable and long-lasting, while also taking into account portability and practicality.

-Chain hoist: This structure is simple and durable, requiring no power drive. It is flexible and easy to operate, with stable and reliable load-bearing capacity. It is suitable for rescue operations in various scenarios.

Hebei Shengyu Lifting Equipment makes reliable electric rescue tripods and related equipment. Whether paired with a hand crank or a chain hoist, they are easy to use and operate, requiring no electricity and offering stability and safety. For any rescue scenario, choosing Hebei Shengyu Lifting Equipment means peace of mind and reliable performance, helping you successfully complete every rescue operation.
