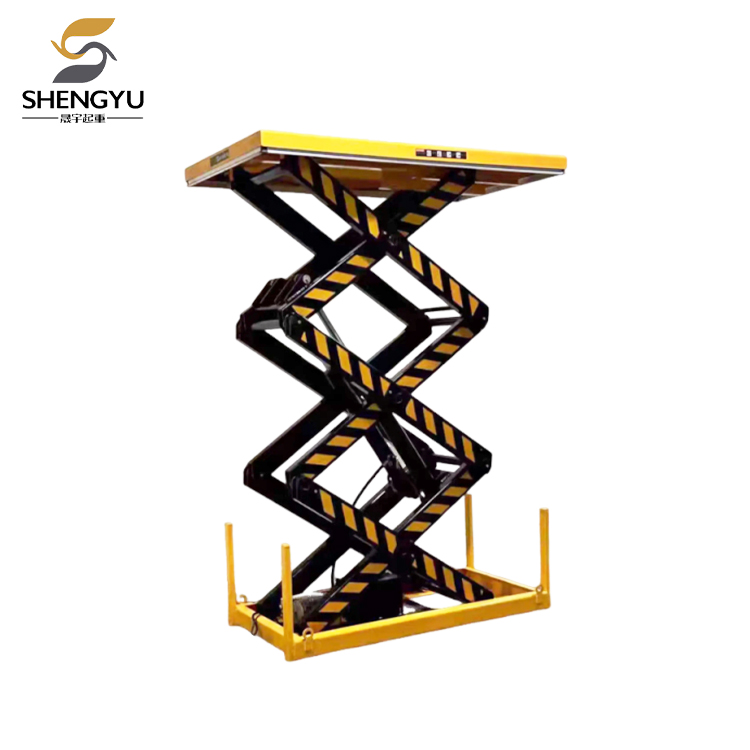

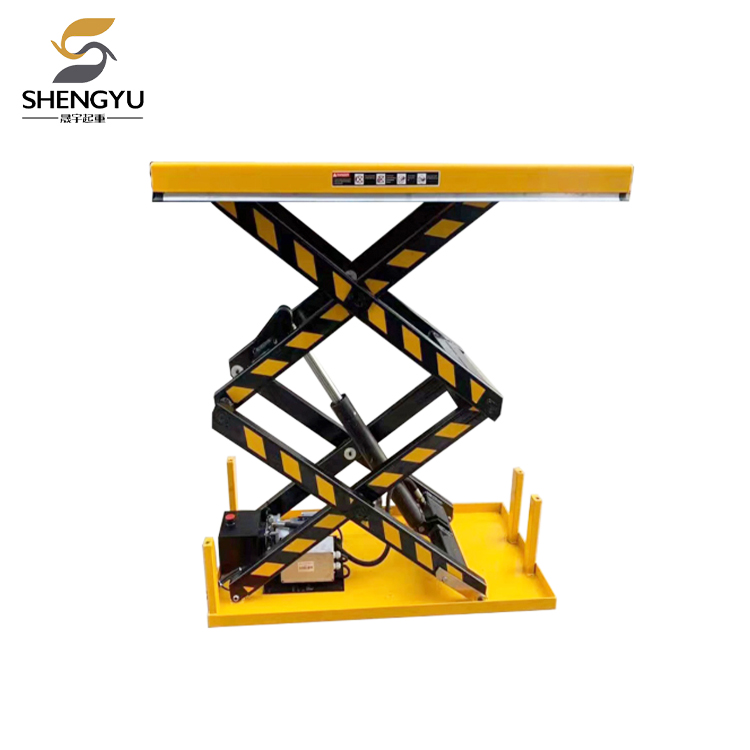

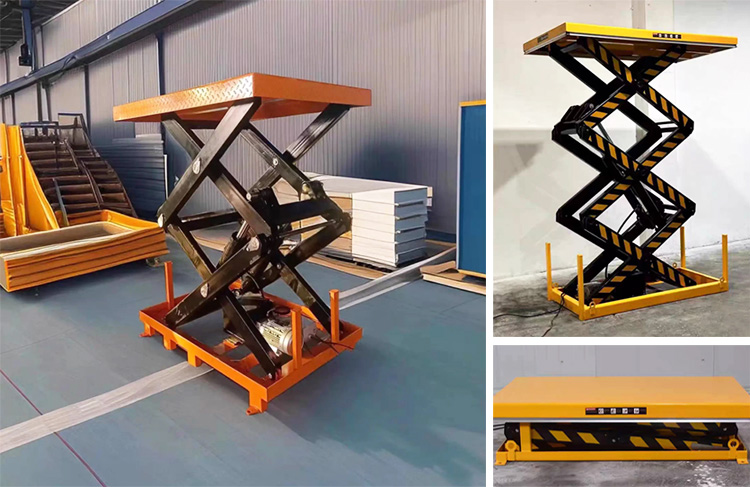

Fixed Electric Double Scissor Lift Platform
Manufactured by Hebei Shengyu, this fixed electric double scissor lift platform is made of high-strength manganese steel rectangular tubes, equipped with thickened scissors, sealed oil cylinders and pure copper motors. It enables easy and stable lifting of heavy loads. Suitable for parts transfer, warehouse handling, logistics transport, exhibition halls, workshop production and other scenarios.
Send Inquiry

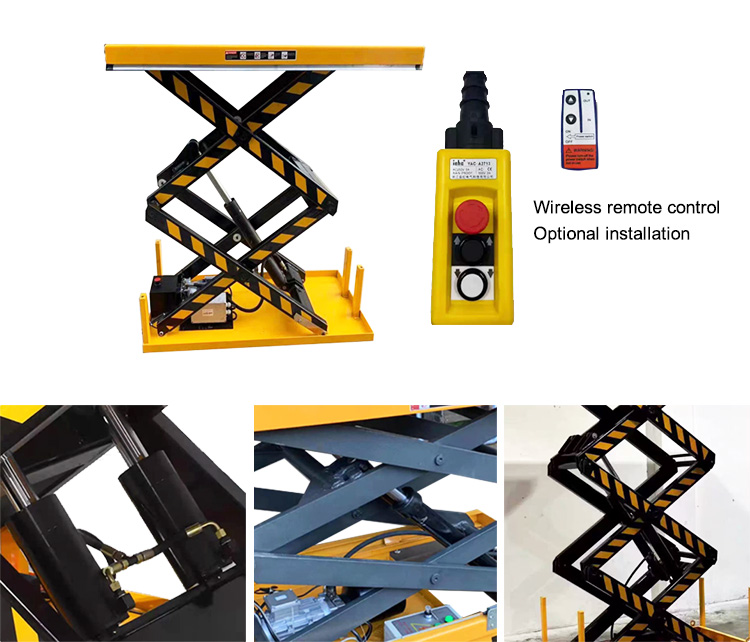

Product Description
Product Details of Fixed Electric Double Scissor Lift Platform
1. Thickened painted tabletop, rust-proof and corrosion-resistant
2. Stable lifting sealed cylinder, precision steel made, safe and reliable performance
3. Thickened widened steel structure, anti-rust and anti-corrosion, strong bearing capacity and anti-tilt
4. Wired remote control with independent operation, easy-to-use buttons and switches
5. Anti-pinch scissor structure, sturdy and durable with widened middle gap
Product parameters
| Model | Rated Load Capacity | Minimum/Maximum height of Worktop | Worktop Size (Length x Width) | Base Size (Length x Width) | Ascent Time | Voltage | Net Weight |
| kg | mm | mm | mm | s | V | kg | |
| JQ1001 | 1000 | 205/1000 | 1300×850 | 1266×680 | 20-25 | 380/220 | 200 |
| JQ1002 | 1000 | 205/1000 | 1600×1000 | 1266×680 | 20-25 | 380/220 | 230 |
| JQ1003 | 1000 | 240/1300 | 1700×850 | 1600×680 | 30-25 | 380/220 | 250 |
| JQ1004 | 1000 | 240/1300 | 1700×1000 | 1600×680 | 30-25 | 380/220 | 260 |
| JQ1005 | 1000 | 240/1300 | 2000×850 | 1600×680 | 30-25 | 380/220 | 260 |
| JQ1006 | 1000 | 240/1300 | 2000×1000 | 1600×680 | 30-25 | 380/220 | 280 |
| JQ2001 | 2000 | 230/1000 | 1300×850 | 1255×785 | 20-25 | 380/220 | 260 |
| JQ2002 | 2000 | 230/1000 | 1600×1000 | 1255×785 | 20-25 | 380/220 | 290 |
| JQ2003 | 2000 | 250/1300 | 1700×850 | 1630×785 | 25-25 | 380/220 | 320 |
| JQ2004 | 2000 | 250/1300 | 1700×1000 | 1630×785 | 25-25 | 380/220 | 340 |
| JQ2005 | 2000 | 250/1300 | 2000×850 | 1630×785 | 25-25 | 380/220 | 340 |
| JQ0206 | 2000 | 250/1300 | 2000×1000 | 1630×785 | 25-25 | 380/220 | 360 |
| JQ4001 | 4000 | 250/1050 | 1700×1200 | 1600×930 | 30-40 | 380/220 | 490 |
| JQ4002 | 4000 | 250/1050 | 2000×1200 | 1600×930 | 30-40 | 380/220 | 520 |
| JQ4003 | 4000 | 300/1400 | 2000×1000 | 1980×930 | 30-40 | 380/220 | 540 |
| JQ4004 | 4000 | 300/1400 | 2000×1200 | 1980×930 | 35-40 | 380/220 | 560 |
| JQ4005 | 4000 | 300/1400 | 2200×1000 | 1980×930 | 35-40 | 380/220 | 560 |
| JQ4006 | 4000 | 300/1400 | 2200×1200 | 1980×930 | 35-40 | 380/220 | 580 |
Operation Method of Fixed Electric Double Scissor Lift Platform
Pre-operation inspection for fixed electric double scissor lift platform: Ensure flat and solid ground, no equipment deformation or oil leakage, firm power connection, load within rated capacity and even cargo placement.
Start operation: Connect power supply and press the start button. Hold the lift button to raise the platform steadily to the required height and release to stop. Press the emergency stop switch immediately in case of emergencies.
Lowering and finishing: Press the down button to lower the platform slowly. Cut off power, clear sundries, inspect equipment and keep usage records.
Overloading and eccentric loading are strictly prohibited. No personnel allowed on the platform during lifting. Stop operation for maintenance when faults occur; defective operation is forbidden.

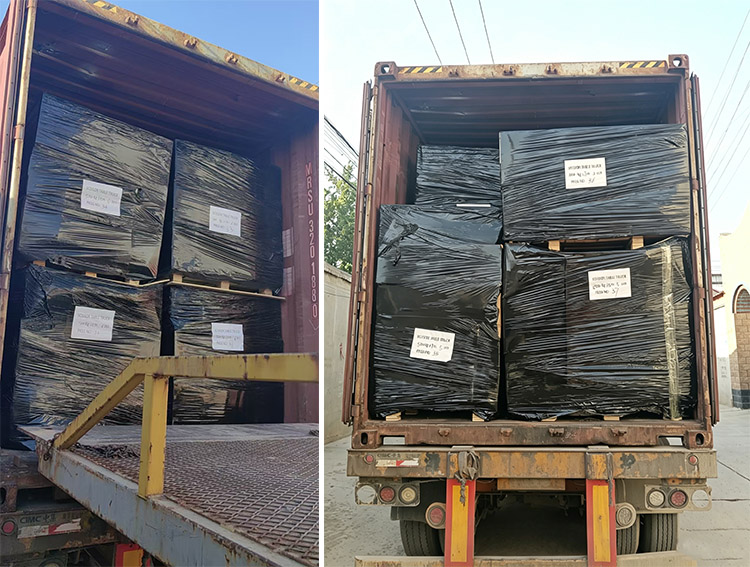

A full container of electric lift platforms ordered by overseas clients has been loaded today. The goods are protected with thick stretch film and wooden pallets against moisture and scratches. Every procedure including production, packaging, quality inspection and loading is strictly controlled. We focus on every detail to ensure safe delivery and hand over intact equipment to customers.
Shengyu Hoist fixed electric double scissor lift platform bears heavy loads effortlessly. One-touch handle control ensures simple and hassle-free operation. For inquiries, call hotline: 15133220073 (WeChat available). Email: sherry@syhoist.com. Welcome your quotation requests anytime.
