HSH-VA Type Lever Block
Shengyu is a leading enterprise focusing on the manufacturing of lifting machinery, especially in the production of HSH-VA type lever block with its unique design, excellent performance and a wide range of applications, has become the preferred choice of many enterprises and individual users.
Send Inquiry
Product Description
HSH-VA type lever block is the core component of a manual lifting tool, which realizes the lifting and moving of heavy objects through the lever principle. The product is made of high quality iron, aluminum, steel and other metal materials, with high strength, corrosion resistance, wear resistance and other characteristics. Is suitable for all kinds of lifting operations, such as equipment handling, cargo handling, production line maintenance, etc., which can significantly improve work efficiency and reduce labor intensity.
Quick details
1.Model: HSH-VA type lever block
2.Capacity: 0.75ton,1.5ton,3ton,6ton,9ton
3.Lifting Height: 1.5m,3m,6m,customized
4.Load Chain Material: G80 Manganese steel.
5.Chain surface treatment: tumbled, blackened, galvanized,etc.
6.Color: Yellow or as required
7.Package: Wooden case
Product features
1.Compact design for lightweight portability.
2.Integrally molded chain wheel allows operation to be more robust and durable.
3.Forged and heat-treated load hooks with safety latch.
4.Double pawl brake system.
5.G80 Manganese steel load chain.
6.Sealed needle bearing, low handle force and more efficient.
7.Heat treated split load double reduction alloy gears.
8.Test load >= 125% of rated load.
Parameter (Specification)
|
Model |
HSH-VA-0.75T |
HSH-VA-1.5T |
HSH-VA-3T |
HSH-VA-6T |
HSH-VA-9T |
|
Capacity (ton) |
0.75 |
1.5 | 3 | 6 | 9 |
|
Standard lifting Height (m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Test load (ton) |
1.125 | 2.5 | 4.5 | 7.5 | 11.25 |
|
Min distance between Hooks(Hmin)(mm) |
285 | 315 | 340 | 380 | 475 |
|
Chainpull to lift full load (N) |
25 | 33 | 34 | 34 | 35 |
|
No.of load chain fall lines |
1 | 1 | 1 | 2 | 3 |
|
Dia of load chain (mm) |
6 | 8 | 10 | 10 | 10 |
|
Net weight(kg) |
7 | 11 | 20 | 30 | 48 |
|
Gross weight (kg) |
8 | 12 | 22.5 | 34 | 50 |
|
Packing size (L*W*H cm) |
36*13*16 | 50*14*19 | 54*17*21 | 54*18*21 | 82*32*15 |

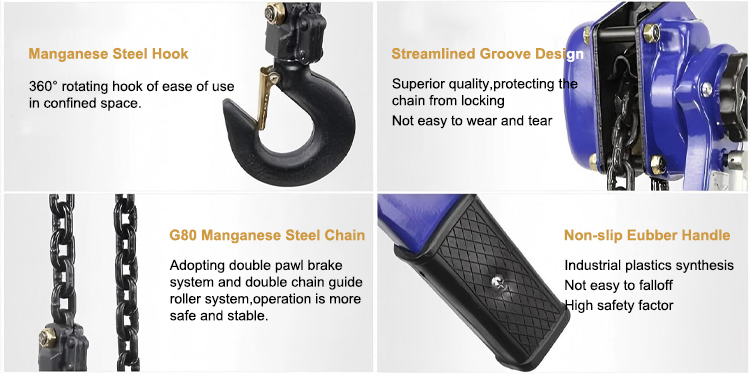

Product details:
Product application
HSH-VA type lever block is widely used in construction, manufacturing, logistics and other fields. In the construction field, it is often used for equipment handling, steel binding, formwork installation and other operations; In the manufacturing field, it can be used for heavy lifting on the production line, equipment installation, etc. In the field of logistics, it can be used for loading and unloading of goods, sorting and other operations.
Product maintenance and maintenance
In order to ensure the long-term stable operation of HSH-VA type lever block, the user should check, clean and lubricated the equipment regularly. Specific maintenance measures include: check pulley block, lever, chain or wire rope components such as wear; Clean the dust and oil on the surface of the equipment; Lubricate key components, etc. In addition, the user should also comply with the safety operation procedures in the product instruction manual to ensure the safety of the operation process.
HSH-VA type lever block with its unique design, excellent performance and a wide range of applications, has become the choice of many enterprises and individual users. Choosing lever block will bring you a more efficient, safer and more reliable use experience for your lifting operations. We look forward to working with you to jointly promote the development and innovation of the lifting equipment industry.
