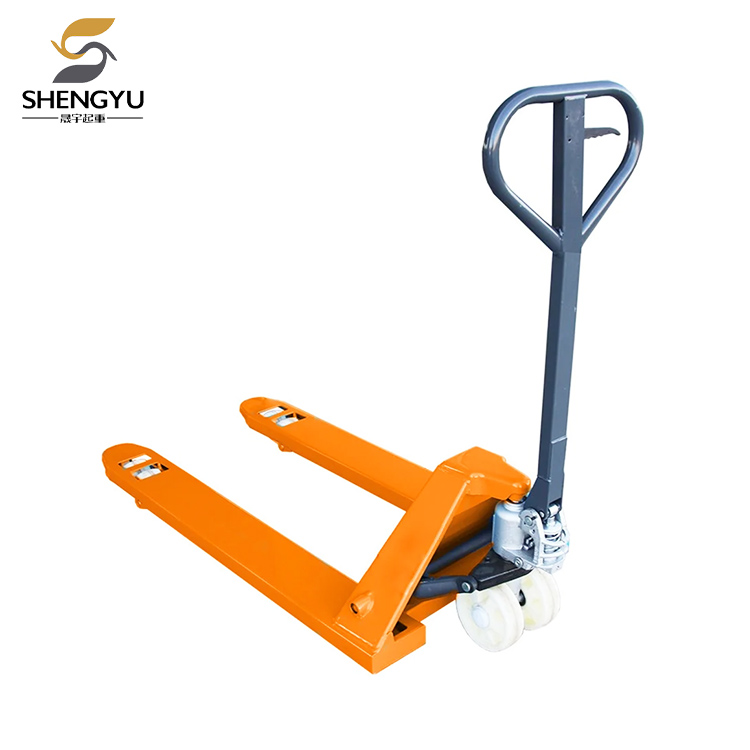

Hydraulic Hand Pallet Truck

Hebei Shengyu Hoisting Machinery Manufacturing Co., Ltd is a professional manufacture of hydraulic hand pallet truck，hydraulic stackers and other material handing & lifting equipments, testing equipment is complete, strong technical force,willing to provide you with high quality hydraulic hand truck.

Send Inquiry

Product Description

Hydraulic hand pallet truck is a kind of mechanical equipment that realizes lifting and transportation through hydraulic system.Hydraulic hand pallet truck is widely used in industry, warehousing, logistics and other fields, is an important equipment for lifting and transportation industries.

How to use a Hydraulic Hand Pallet Truck？

Hydraulic Hand Pallet Truck Parameter (Specification)

Model	SY-2T	SY-2.5T	SY-3T	SY-5T
Rated Load (kg)	2000	2500	3000	5000
Min. Height (mm)	85	85	85	90
Max. Lifting Height (mm)	200	200	200	200
Steering Wheels (mm)	180*50	180*50	180*50	180*50
Fork Wheels (mm)	80*70	80*70	80*70	80*68
Overall Height (mm)	1220	1220	1220	1240
Overall Length (mm)	1560	1560	1560	1600
Nominal Length (mm)	1200	1200	1200	1200
Nominal Width (mm)	550/685	550/685	550/685	685
Fork Size W*H	160/55	160/65	160/65	180/65
Wheels Material	Nylon/PU	Nylon/PU	Nylon/PU	Nylon/PU

Features of hydraulic hand pallet truck

1. Simple third gear control handle

2.Small integrated pump,oil return device and safety relief valve.

3.The hydraulic hand pallet truck has Highly balanced reinforced frame

4.Controllable descent speed,slow descent

5.Optional wheels:nylon wheel,polyurethane(PU) wheel,steel wheel

6.Special requirements can be negotiated and met

7.5000 lifts without deformation under rated load

8.Customized size,color,logo and packaging etc. are available

Applications of hydraulic hand pallet truck

Hydraulic hand pallet truck is widely used in factories, warehouses, supermarkets and other occasions.

In the factory, hydraulic hand pallet truck is used for moving raw materials and semi-finished products to the workshop, as well as moving finished products out for packaging and transportation.

In the warehouse, the hydraulic hand pallet truck is used for loading and unloading, moving and stacking of goods, especially for goods with large weight or volume, the Hydraulic hand pallet truck is a very efficient and labor-saving tool.

In supermarkets, hydraulic hand pallet truck is used for the placement and sorting of goods, especially those that need to be displayed at high places.

How to choose?

1. Strong steel structure

①Thickened high carbon steel plate with long service life.

②Our pallet trucks has a reinforce(Bottom stiffener)on the back,

it can ensure the forks is stronger and does not deform during in use.

2. Reliable hydraulic system is very important.

Integrated pump,has good sealing and no oil leakage,it can ensure the safety during in use.

3. Wheels choose and fork size choose

How to choose pallet truck wheels？

①Nylon wheel

Low wheel resistance,easy to pull.wear-resistant,corrosion-resistantand chemically stable

Suitable for outdoor floors(Such as cement floors,concrete floorand uneven flooring,etc.)

②PU wheel (Polyurethane)

Less noise,stronger shock absorption,wear-resistant

Suitable for indoor smooth surface(Such as marble,paint,epoxy floor,etc.)

How to choose fork size？

③Size less than 700mm ④size more than 700mm

Choose the fork width 550mm Choose the fork width 685mm

As an efficient and convenient logistics handling tool, hydraulic hand pallet truck plays an important role in modern logistics enterprises. With the continuous progress of science and technology and the continuous development of the market, the application prospects of hydraulic hand pallet truck will be broader.

Hydraulic Hand Pallet Truck workshop views
