Hydraulic Toe Jack

Hebei Shengyu Hoisting is a professional manufacturer producing jacks of diverse specifications and models.This hydraulic toe jack has prominent advantages featuring a large rated load and dependable load-bearing capacity. Its toe part fits low-clearance working positions, while the top head is suitable for conventional lifting scenarios.

Send Inquiry

Product Description

With an extensive lifting range, The hydraulic toe jack can adapt to a wide variety of working conditions.Equipped with a portable handle for effortless transportation, it features hydraulically powered lifting to cut down physical labor. The integrated pressure relief knob ensures stable adjustment. Built with a steel structure, the jack boasts outstanding wear resistance and long service life, making it perfectly suited for factory equipment relocation and heavy-industry maintenance tasks.

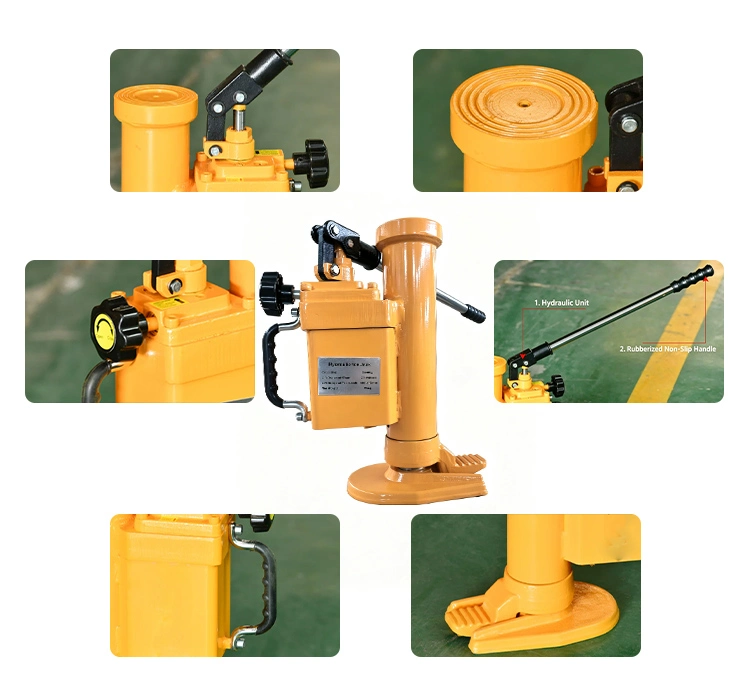

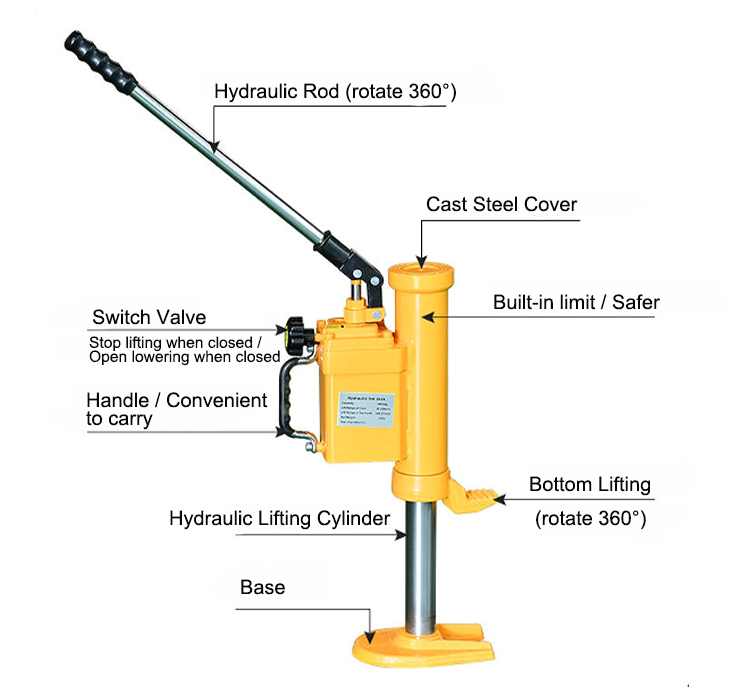

Product Details of Hydraulic Toe Jack

1.Cast steel top cover made of premium steel with quenching treatment, sturdy and long-lasting.

2.Extended hydraulic ram with ergonomic design. Based on lever principle, it enables labor-saving hydraulic lifting.

3.Lifting control valve: Tighten clockwise to close for hydraulic lifting; loosen counterclockwise for slow lowering.

4.U-shaped hand grip ensures stable and safe hydraulic operation, also easy for hand carrying.

5.Built-in overload protection. Safe for installation and transport of large equipment with overload protection function.

6.Thickened base constructed from high-quality steel, stable, durable and with strong load-bearing capacity.

hydraulic toe jack

Hydraulic Toe Jack Technical Parameters

Product Model	Relift	HM50	HM100	HM250
Rated Load (kg)	kg	5000	10000	25000
Lifting Range (Claw Bottom, mm)	mm	24~205	28~230	56~215
Lifting Range (Top Head, mm)	mm	366~570	418~648	505~720
Package Dimensions L×W×H (mm)	mm	321×140×366	333×170×418	420×210×505
Net Weight (kg)	kg	22	32	102

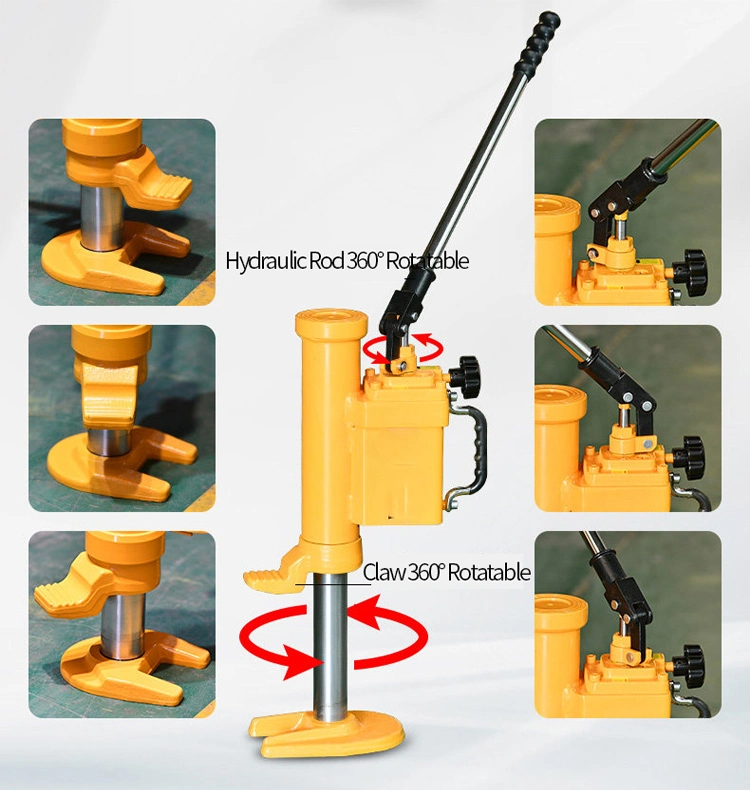

Hebei Shengyu hydraulic toe jack features compact and elegant structure with two supporting surfaces. Its toe and hydraulic ram can rotate 360 degrees. It lifts slowly and smoothly, allowing precise adjustment of the lifted workpiece position.

hydraulic toe lifting jack

This hydraulic toe jack can lift loads from an ultra-low minimum height of 24mm, easily solving lifting difficulties for equipment with narrow ground clearance. It is widely used in mechanical maintenance, servicing and installation work. Three versions with minimum lifting heights of 24mm, 28mm and 56mm are available for selection.

hydraulic toe jacks

This hydraulic toe jack features dual lifting modes: top lifting and toe lifting. Models with load capacities of 5T, 10T and 25T are optional. It is convenient, flexible and durable. Application Reference Pictures.

hydraulic toe jack

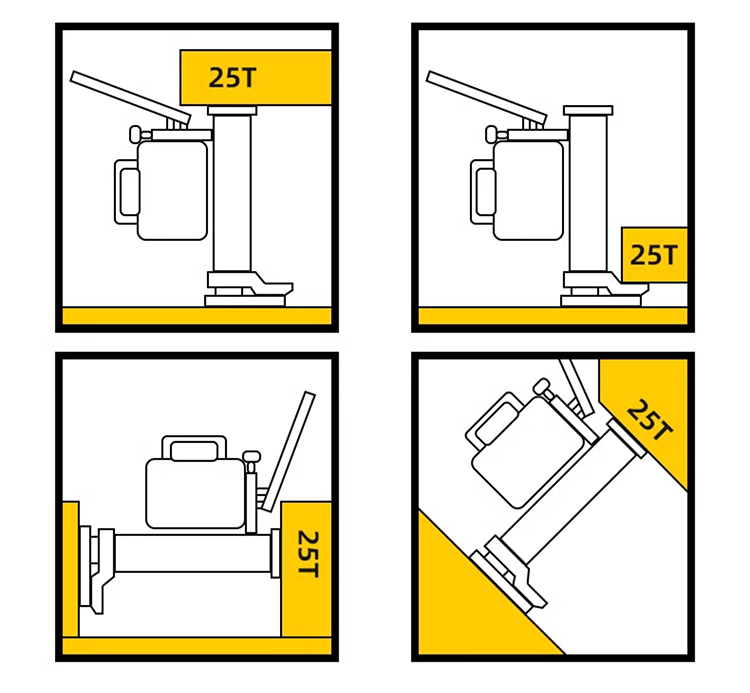

This hydraulic toe jack supports operation at any angle. Its toe and hydraulic ram can rotate 360°, with two support surfaces including the toe support, making it applicable to a wide range of working scenarios.

This multi-angle rotatable hydraulic toe jack from Hebei Shengyu Hoisting fits complex maintenance working conditions. Equipped with a dual-support structure, it adapts to various work sites. It is competent for daily equipment moving and heavy-duty maintenance, delivers long-term stable performance, and greatly improves the efficiency of lifting operations
