Low-Noise 2.5t Aluminum-Housing Hoist

Product Details

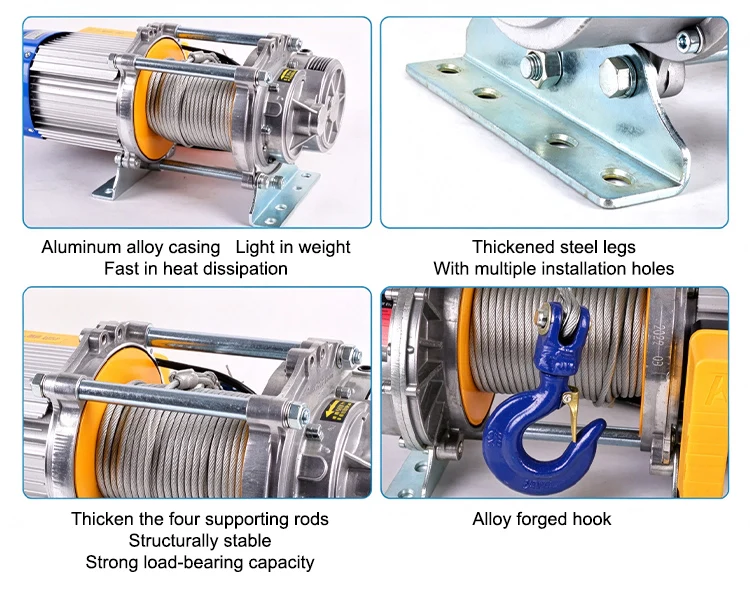

Traditional cast-iron-shell electric hoists are heavy and slow to dissipate heat, and they rust easily in damp or salt-fog environments. The Low-Noise 2.5 t Aluminum-Housing Hoist adopts a die-cast aluminum alloy housing, so unit weight drops noticeably at the same capacity, making one-person handling and overhead installation easier; aluminum conducts heat far better than steel, so the motor sheds heat faster under intermittent, frequent start-stop duty, which helps extend winding insulation and brake life; aluminum naturally forms a dense oxide film and, together with surface coating, resists corrosion better in damp workshops, coastal areas and washdown or food-processing conditions. You are welcome to order a sample unit first and place a bulk order after confirming the working conditions.

I. Where the 2.5 t Capacity Fits

For most users, micro hoists below 1 t are adequate but leave too little margin, while steel or cast-iron hoists above 5 t are powerful but heavy, with higher purchase cost and growing demands on installation space and energy consumption. The Low-Noise 2.5 t Aluminum-Housing Hoist sits exactly in between: it meets small and medium lifting needs, and with its long-time working capability it also serves renovation, port and workshop sites; moreover, its lightweight aluminum housing allows it to be matched to weight-sensitive structures such as small gantry frames, jib cranes and KBK light rail systems, without upgrading the whole unit for the sake of an occasional overload.

II. Working-Condition Fit: Where It Pays Off Most

- Workshop station lifting and loading/unloading on assembly lines;

- Mold changes and equipment maintenance — the maintenance team always keeps one unit on hand;

- Warehouse picking, truck-tail and loading-dock handling;

- Matching small gantry frames / jib cranes / light-duty rails (weight-sensitive);

- Damp, coastal, washdown, food-processing and other rust-prone environments;

- Outdoor or temporary lifting (rain cover and earth-leakage protection required).

III. Typical Specifications

FAQ

Q1. What is the difference between single-rope and double-rope?

On the same hoist, single-rope offers faster speed with lighter loads, while double-rope is slower but lifts heavier loads. Take the CD-K2 2.5T 220V model: single-rope lifting speed is 8 m/min, rated capacity 1.25 t on single rope, lifting height 12 m; switched to double-rope, the speed halves to 4 m/min, the rated capacity doubles to 2.5 t and the lifting height drops to 6 m accordingly.

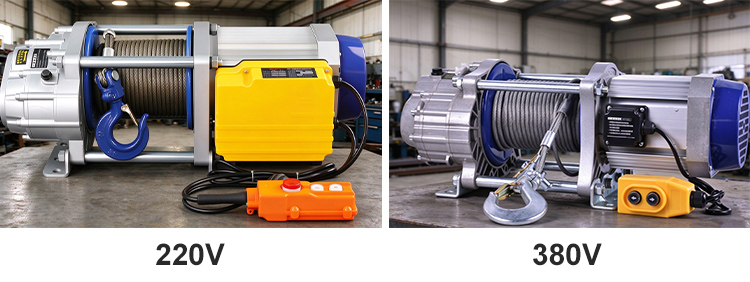

Q2. How do I choose between the 220V and 380V models, and why is the lifting height different?

The 220V/50Hz single-phase model can be connected directly to domestic or temporary site power, with a power of 2.2–4.0 kW; it suits shops, warehouses, home renovation and temporary lifting. The 380V/50Hz three-phase model is more energy-efficient and its motor withstands heat better, so it suits long-time use at fixed workshop stations. Within the same model, the 220V version reaches a lifting height of 12 m (6 m double-rope), while the 380V version reaches 30 m (15 m double-rope); the difference comes from motor power and drum rope capacity. So before choosing the voltage, state clearly what power is available on site and how high you need to lift; for export, also confirm the frequency (50/60Hz) and voltage system of the target market.

Q3. Can the lifting height be extended, and what should I watch out for?

The wire rope length can be customized on request, but drum rope capacity is limited: after extension, at least 3 dead turns must remain on the drum, and motor power, unit weight and packing dimensions must be re-checked at the same time. A practical approach is to select from the standard heights (6 / 12 / 15 / 30 m) first, and only request customization when these genuinely fall short; we will then give you the achievable height range plus the corresponding price and freight changes.

Q4. Can it run continuously, and will the motor overheat?

The Low-Noise 2.5 t Aluminum-Housing Hoist series is built for long continuous working time and the motor is thermally protected; normal duty is a single lift plus short repeated operations, such as station loading and unloading, equipment maintenance lifting, and warehouse handling. If you need near-continuous operation or high-frequency inching, please tell us the usage frequency and single-travel distance in advance; we will recommend one power step up, a 380V three-phase model, or an electric chain hoist better suited to a higher working class, so that repeated thermal-protection trips do not disrupt your cycle.

Q5. What should be noted for installation and fixing?

The hoist body must be fixed reliably through a lifting point or bracket, and the load-bearing structure (I-beam, gantry frame, wall bracket) must withstand the rated load plus the impact factor — never hang it on a brick wall, ceiling or temporary structure with expansion bolts alone. The power side must be fitted with earth-leakage protection and an independent switch, and a rain cover must be added for outdoor use. Before first use, run it without load and check the brake, upper and lower limit switches and wire rope spooling; only apply load after confirming everything is normal. Operators must read the manual and carry out periodic inspections as required.

Q6. How do sampling, lead time and customization work?

The Low-Noise 2.5 t Aluminum-Housing Hoist supports single-unit sampling; standard models are kept in stock, and customized models are scheduled for production after drawing approval. Customization covers body branding, voltage and frequency, wire rope length, control method (pendant / remote), packaging and multilingual manuals. For a quotation, provide the rated capacity, lifting height, power supply type and purchase quantity, and we will come back with model and configuration recommendations, tiered pricing and a firm lead time; you can place the order once the specifications are confirmed.

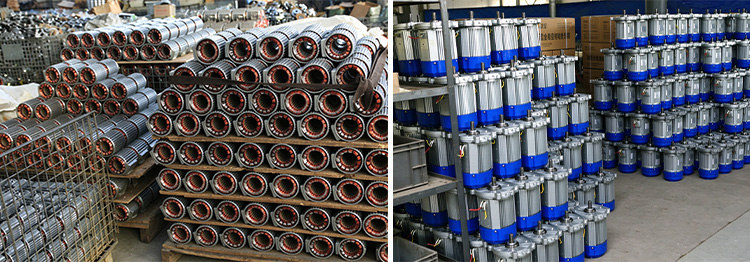

About Our Factory

ShengYu factory is a manufacturing plant dedicated to the R&D, production and sales of lifting machinery and equipment. With years of experience in the lifting industry, we have professional production workshops, precision machining equipment and a complete product testing system, achieving full in-house control from parts machining and unit assembly to finished-product inspection, so product quality is stable and reliable. The Low-Noise 2.5T Aluminum-Housing Hoist supports bundled purchasing across product categories, single-unit sampling, full-factory batch orders and OEM customization; standard models are kept in stock and customized models are scheduled for production after drawing approval.
