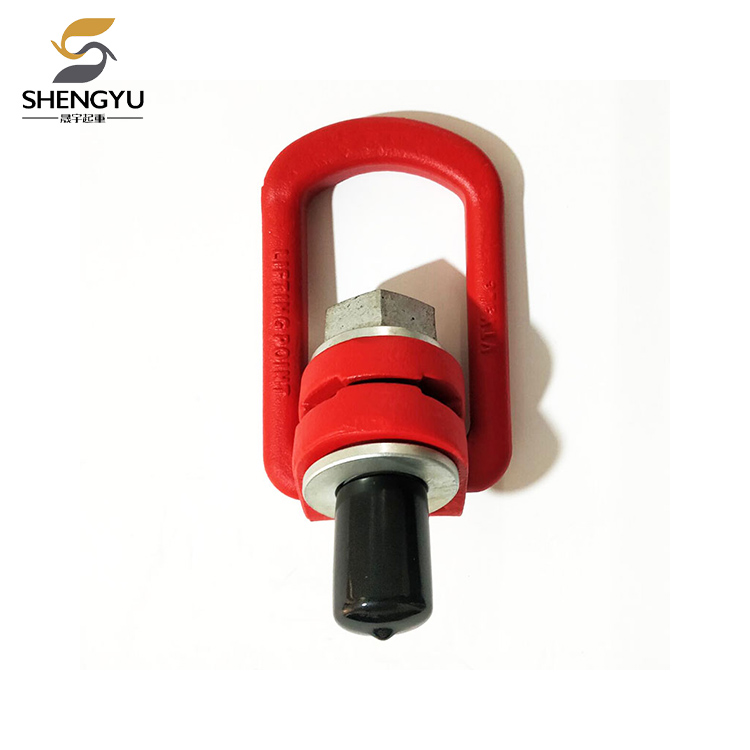

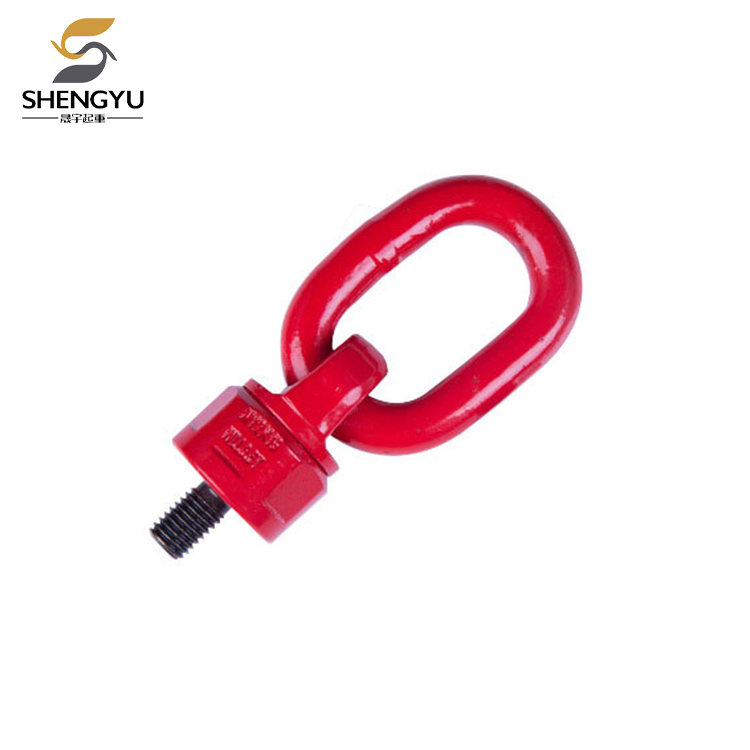

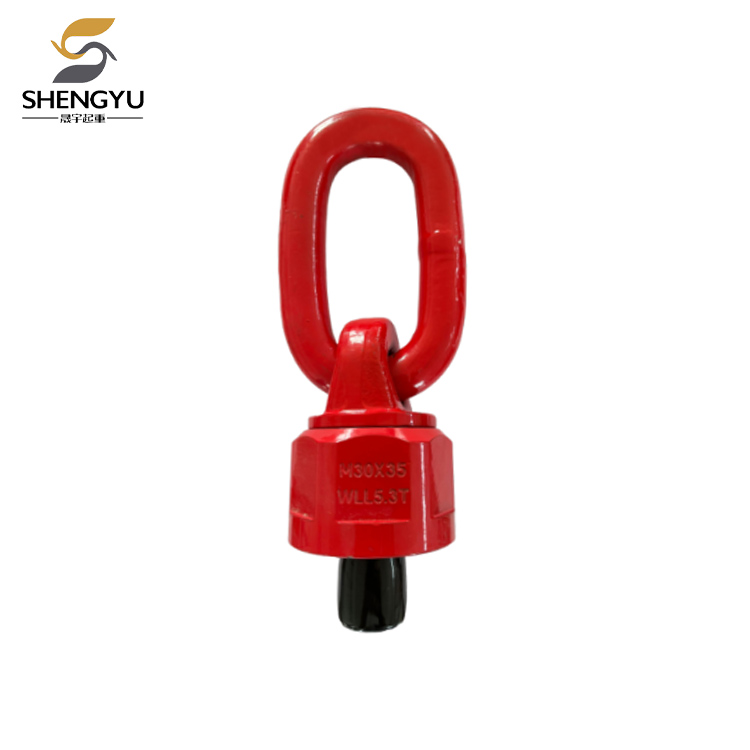

Multi-Directional using Lifting Swivel

Product Introduction

The multi-directional using lifting swivel, also known as a rotating lifting ring or rotating lifting eye bolt, is used in special lifting scenarios with angles. It features 360-degree horizontal rotation and 180-degree vertical flipping functions. Compared with traditional lifting eye bolts, it is more flexible and can meet lifting needs in a comprehensive manner.

Features

1.Precision threads: These threads have been treated with blackening and rust prevention, meeting the genuine 6G precision standard. They are sturdy and durable, with a long service life.

2. Low-carbon alloy steel material: It is forged from high-quality alloy steel and is sturdy and durable. It has a strong load-bearing capacity, can withstand high temperatures and is resistant to corrosion.

3. Flexible directional control: It can be vertically flipped or freely rotated 360 degrees. With built-in ball bearings, it does not vibrate during rotation, ensuring uniform distribution of the gravitational force.

4. Paint coating technology: Through electrostatic powder spraying, the surface of the workpiece appears bright and has high gloss. It also boasts excellent corrosion resistance and wear resistance.

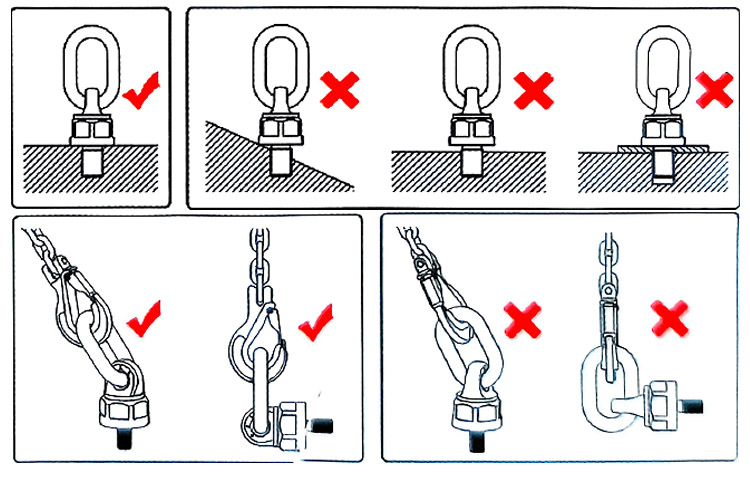

Installation Instructions

1. The threaded holes of the lifted object must be perpendicular to the multi-directional rotating hook in the same straight line; otherwise, it will deviate and not be firmly fixed. Moreover, the threaded specification must match that of the multi-directional rotating device.

1.The bottom of the multi-directional using lifting swivel must fit tightly with the object to be lifted to prevent gaps, which can cause large bending moments and reduce the service life of the swivel.

2.It is prohibited to place gaskets, spacers or other accessories between the swivel and the object to be lifted, or to modify the lifting ring.

3.The multi-directional swivel must be installed on hard metal surfaces such as steel and iron, and must not be installed on soft materials such as wood and cement.

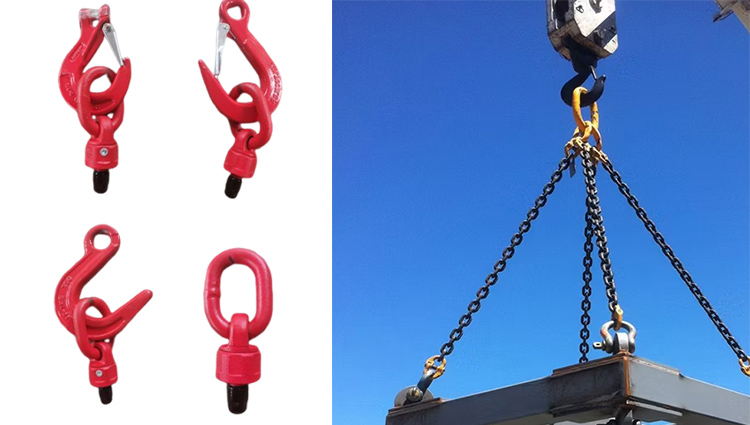

4.Select appropriate lifting tools to match the multi-directional swivel to ensure the force direction is proper.

5.The multi-directional swivel must be installed at the center of gravity or symmetrically around the center of gravity.

7. After the multi-directional swivel is installed, when the lifting ring is under force, neither the lifting ring nor the lifting tool shall have any interference or obstruction with the lifted object.

For all your complex Angle lifting needs, Shengyu's multi-directional using lifting swivel offers unparalleled flexibility, durability and safety. Are you ready to improve your operation? Contact us immediately for more information and to find the perfect solution for your needs.
