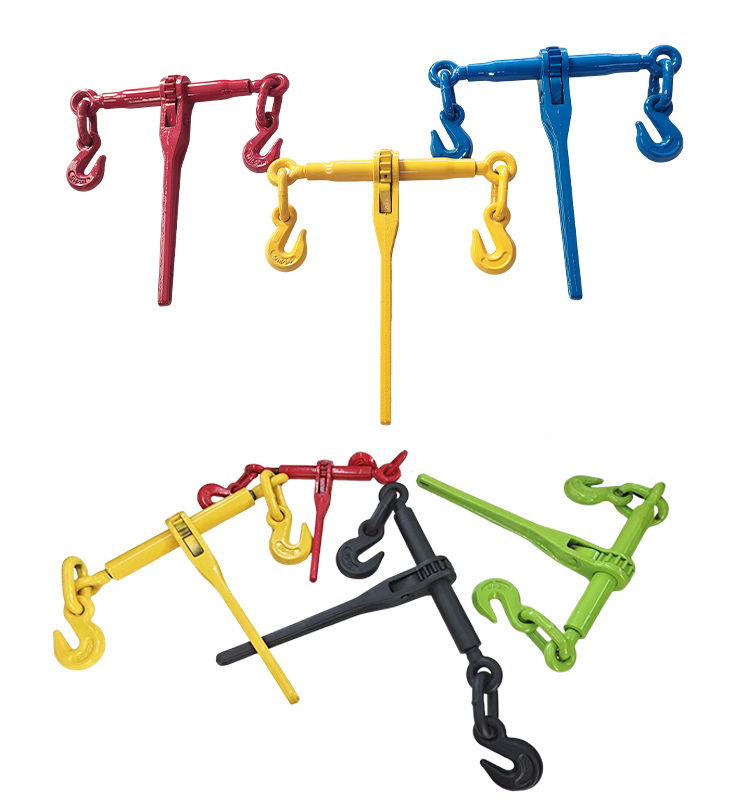

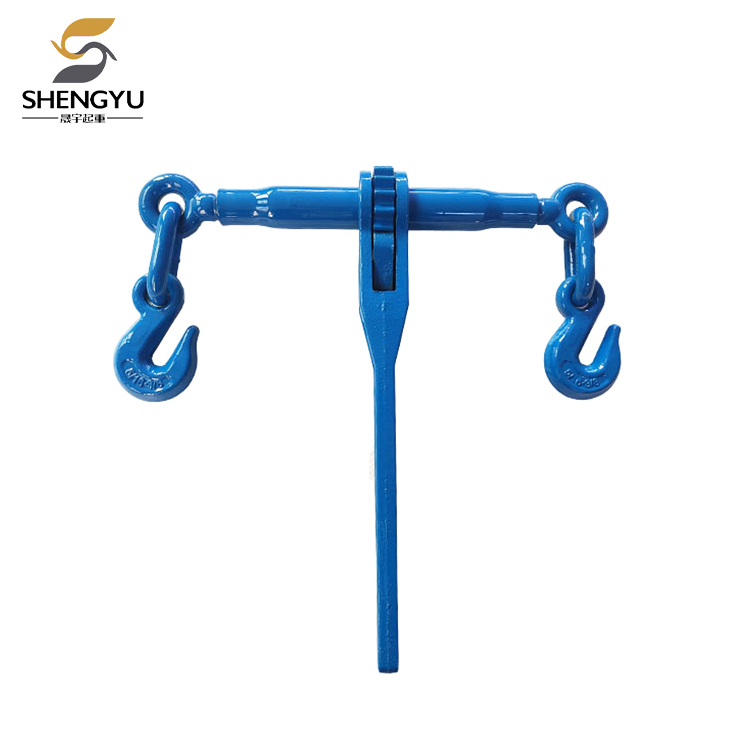

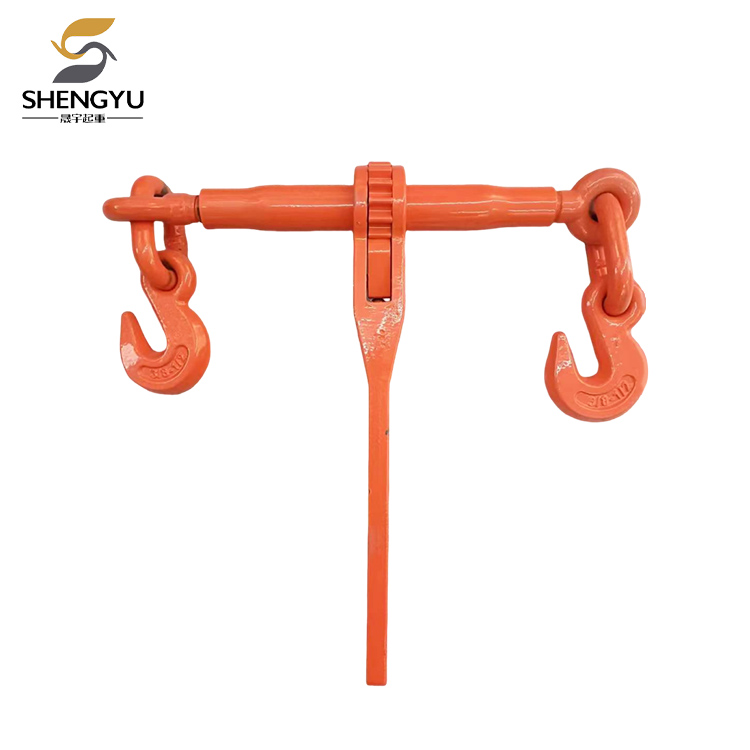

Ratchet Chain Tensioner

The ratchet chain tensioner comes in four models: 1/4-5/16 (1T for 6mm-8mm chains), 5/16-3/8 (3T for 8mm-10mm chains), 3/8-1/2 (4T for 10mm-12mm chains), and 1/2-5/8 (6T for 12mm-16mm chains). Custom chain lengths are also available.

Working principle

The core of the ratchet chain tensioner is a combination of three mechanical principles: ratchet one-way locking, lever effort saving, and positive and negative thread pull. It is used to firmly tighten the chain and fix heavy objects, and is widely used in scenarios such as truck bundling, equipment tensioning, and chain fixing.

1.Core Basic Structure

The ratchet chain tensioner mainly consists of a central spindle with a double-sided threaded shaft, a ratchet gear + anti-reverse pawl to prevent backlash, a long, labor-saving handle, and high-strength lifting hooks at both ends.

2.Tightening Process

First, secure the chain to the fixed points using the hooks at both ends, and manually pre-tighten the chain to allow for some slack. Move the handle back and forth; the pawl engages the ratchet, driving the main shaft to rotate in one direction. Simultaneously, the reverse thread retracts the pull rod, continuously tightening the chain and increasing the tension. When the handle returns to its original position, the pawl automatically locks the ratchet, preventing the main shaft from reversing or the tension from rebounding and loosening.

3.Unlocking Principle

During disassembly, move the safety lever to completely separate the anti-lock pawl from the ratchet, directly releasing the lock. The main shaft can rotate freely, the tension dissipates quickly, and the components at both ends automatically open, allowing the hook to be easily removed.

4.Labor-saving and safety features

The long handle utilizes the lever amplification principle, allowing for the output of several tons of tightening force with minimal human effort. The entire assembly is forged from high-strength alloy steel with an anti-rust coating, making it impact-resistant, durable, and reliable even under heavy loads.

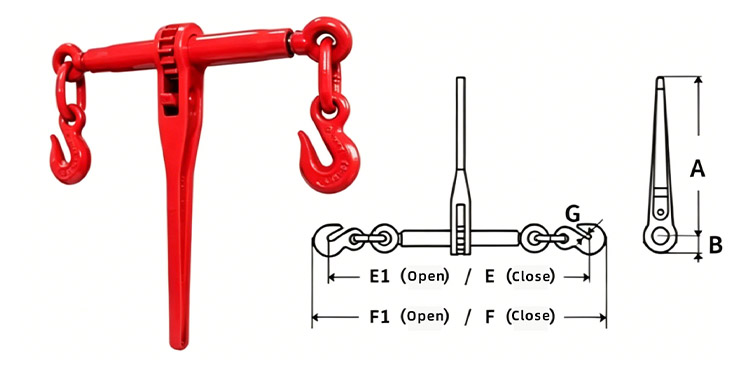

Product parameters

Hebei Shengyu Lifting Industry's ratchet chain tensioner features a compact structure, simple operation, and a secure self-locking mechanism. It tightens securely without slipping and unlocks quickly and effortlessly. Hebei Shengyu supports customization in various colors, and discounts are available for bulk orders. For inquiries or purchasing plans, please call 15133220073 (WeChat available), or email sherry@syhoist.com. Inquiries are welcome at any time.
