Tower Spring Balancer
Hebei Shengyu Lifting Machinery Factory's tower spring balancer is specially designed for industrial production lines, assembly and welding stations. It uses the elasticity of coil springs to achieve weightless suspension of tools, making it easy and effortless to pull up and down without manual lifting. It greatly reduces labor intensity and improves work efficiency, making it an excellent choice for labor-saving suspension tooling.
Send Inquiry
Product Description
Tower spring balancers are commonly available in various tonnages, including 1-5kg, 9kg, 15kg, 22kg, 30kg, 50kg, and 80kg. The wire rope length is 1.5 meters, and the wire rope thickness is 3mm, 4mm, and 5mm. The length and thickness of the wire rope used will vary depending on the model. Self-locking, long-stroke, and telescopic types are available, and customized industrial models are also supported.
Parameters
|
Model |
Loading capacity(KG) |
Working length(M) |
Rope Dia. (MM) |
Weight (KG) |
|
EK-0 |
0.5-1.5 |
1.0 | 3.0 | 0.6 |
|
EW-3 |
1-3 | 1.5 | 3.0 | 1.5 |
|
EW-5 |
3-5 | 1.5 | 3.0 | 1.5 |
|
EW-9 |
5-9 | 1.3 | 4.2 | 4.0 |
|
EW-15 |
9-15 |
1.3 |
4.2 |
4.0 |
|
EW-22 |
5-9 |
1.5 |
5.1 |
7.8 |
|
EW-30 |
9-15 |
1.5 |
5.1 |
7.8 |
|
EW-40 |
30-40 |
1.5 |
5.1 |
10.0 |
|
EW-50 |
40-50 |
1.5 |
5.1 |
10.5 |
|
EW-60 |
50-60 |
1.5 |
5.1 |
12 |
|
EW-70 |
60-70 |
1.5 |
5.1 |
12.5 |
|
EW-80 |
70-80 |
1.5 |
5.1 |
13 |
|
EW-100 |
80-100 |
1.5 |
5.1 |
18 |
|
EW-120 |
100-120 |
1.5 |
5.1 |
19 |
|
EW-140 |
120-140 |
1.5 |
5.1 |
20 |
|
EW-160 |
140-160 |
1.5 |
5.1 |
22 |
|
EW-180 |
160-180 |
1.5 |
5.1 |
24 |
|
EW-200 |
180-200 |
1.5 |
5.1 |
26 |
|
ELF-3 |
1.5-3.0 |
2.5 | 3.0 | 5.2 |
|
ELF-5 |
3.0-5.0 |
2.5 |
3.0 |
5.3 |
|
ELF-9 |
5.0-9.0 |
2.5 |
3.0 |
5.6 |
|
ELF-15 |
9.0-15 |
2.5 |
5.1 |
5.6 |
|
EWF-90 |
70-90 |
2.0 |
5.1 |
28 |
|
EWF-105 |
80-105 |
2.0 |
5.1 |
28 |
|
EWF-120 |
100-120 |
2.0 |
5.1 |
28 |
|
EWF-140 |
120-140 |
2.0 |
5.1 |
28 |
|
EW1-3 |
1-3 |
3.0 |
5.1 |
28 |
|
EW3-5 |
3-5 |
3.0 |
5.1 |
28 |
|
EW5-9 |
5-9 |
3.0 |
5.1 |
28 |
|
EW9-15 |
7-12 |
3.0 |
5.1 |
28 |
|
SZW-9 |
5-9 |
3.0 |
4.0 |
3.9 |
|
SZW-15 |
9-15 |
3.0 |
4.0 |
3.9 |
|
SZW-22 |
15-22 |
3.0 |
4.0 |
4.2 |
|
EWZ-9 |
5-9 |
1.5 |
4.2 |
4.5 |
|
EWZ-15 |
9-15 |
1.5 |
4.2 |
4.5 |
|
SB-1.2 |
0.5-1.5 |
2.0 |
2.0 |
1.0 |
|
SB-2 |
1-3 |
2.0 |
2.0 |
1.0 |
|
SB-3 |
3-5 | 2.0 | 2.0 | 1.0 |

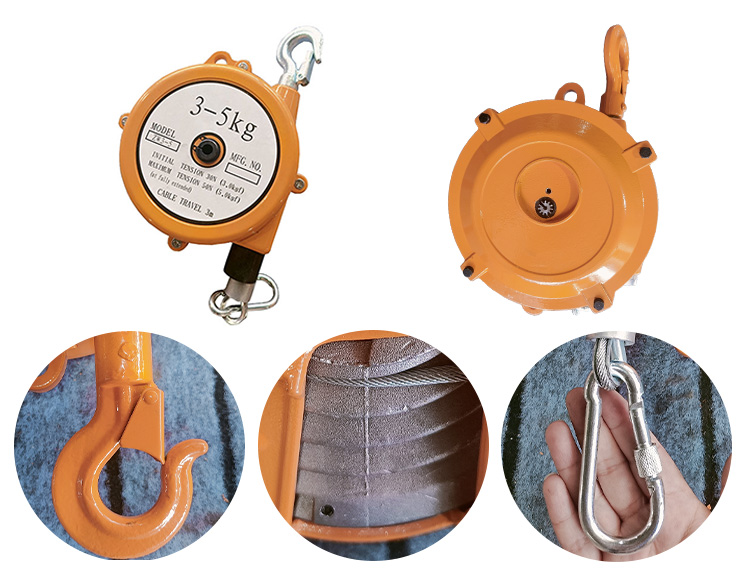

Tower Spring Balancer Product Details
1. Lockable safety buckle for secure and reliable operation.

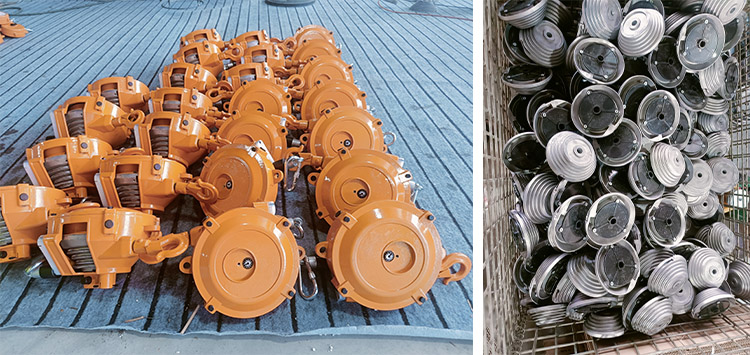

2.Tower pulley with aluminum alloy wire rope; thickened wire rope is more resilient and has a longer service life.
3. Alloy steel forged hook with a safety buckle to prevent slippage.

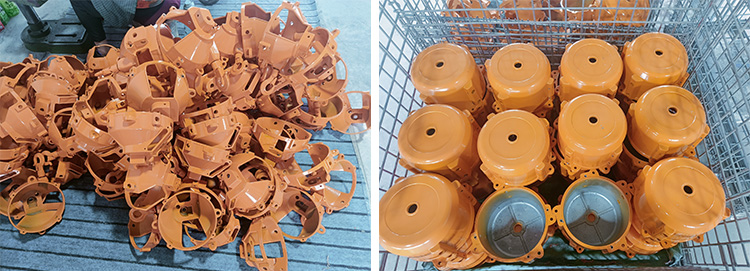

4. Thickened aluminum-magnesium alloy casing reduces machine weight and enhances wear resistance and durability.

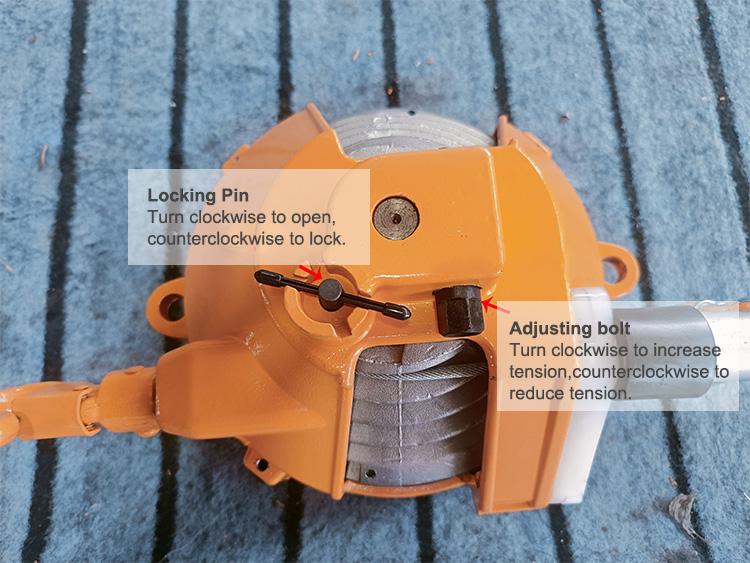

5.Thickened, hardened adjusting bolts with positive and negative markings allow for adjustable tension; combined with a locking pin design, they offer greater ease of use.
Usage Environment
Tower spring balancers are suitable for various working conditions in industrial production and can be used in factory assembly lines, machining workshops, automobile manufacturing production lines, welding and grinding stations, auto repair shops, and other places.
Suitable for use in indoor factories and enclosed workshops under normal temperature conditions, and also in well-ventilated semi-outdoor steel structure workstations. It can withstand working environments with light dust and ordinary mechanical oil contamination, and is suitable for continuous assembly line operations and high-frequency tool suspension conditions.
Not suitable for use in environments with strong acid or alkali corrosion, high humidity and rain, flammable or explosive high temperatures, or harsh sites with severe dust or intense vibration. It can meet the suspension operation needs of most light and heavy industrial tooling.
Hebei Shengyu crane tower spring balancers are lightweight, compact, require no power supply, have a compact internal structure, and use a thickened aluminum-magnesium alloy casing. The wire rope length can also be customized. Hebei Shengyu produces high-quality products at low prices. For inquiries and specific quotes, please call 15133220073 (WeChat available), or email sherry@syhoist.com. Feel free to contact us anytime.
