Folding Hydraulic Engine Crane

Product Details

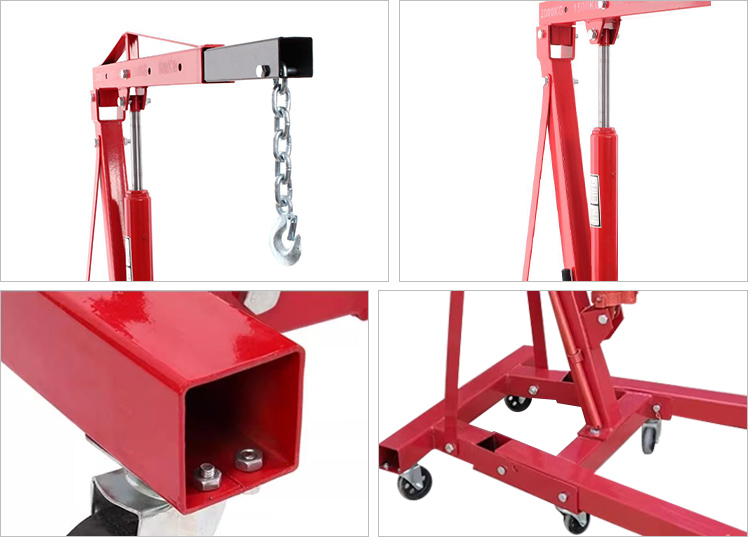

● The telescopic arm can be adjusted as needed. The telescopic arm can be freely extended and retracted. During operation, the arm length should be flexibly adjusted according to the lifting weight: the shorter the arm length, the stronger the load-bearing capacity, ensuring a stable and safe lifting process.

● Seamless cast cylinder, zero leakage of sealing. The seamless integrated cast cylinder has excellent sealing performance and eliminates the risk of oil leakage. The operation is cleaner.

● Thickened material, stable and durable body. The folding base and the body are both made of thick steel and high-strength alloy steel through precise manufacturing. The overall structure is stable and solid, with strong load-bearing capacity. It is not likely to deform during long-term operation.

● Thickened support legs, more reliable load-bearing. The support legs are also made of thick alloy steel. The material is sufficient and the base is thick, with excellent load-bearing capacity. The entire machine has stable grounding and operates more safely.

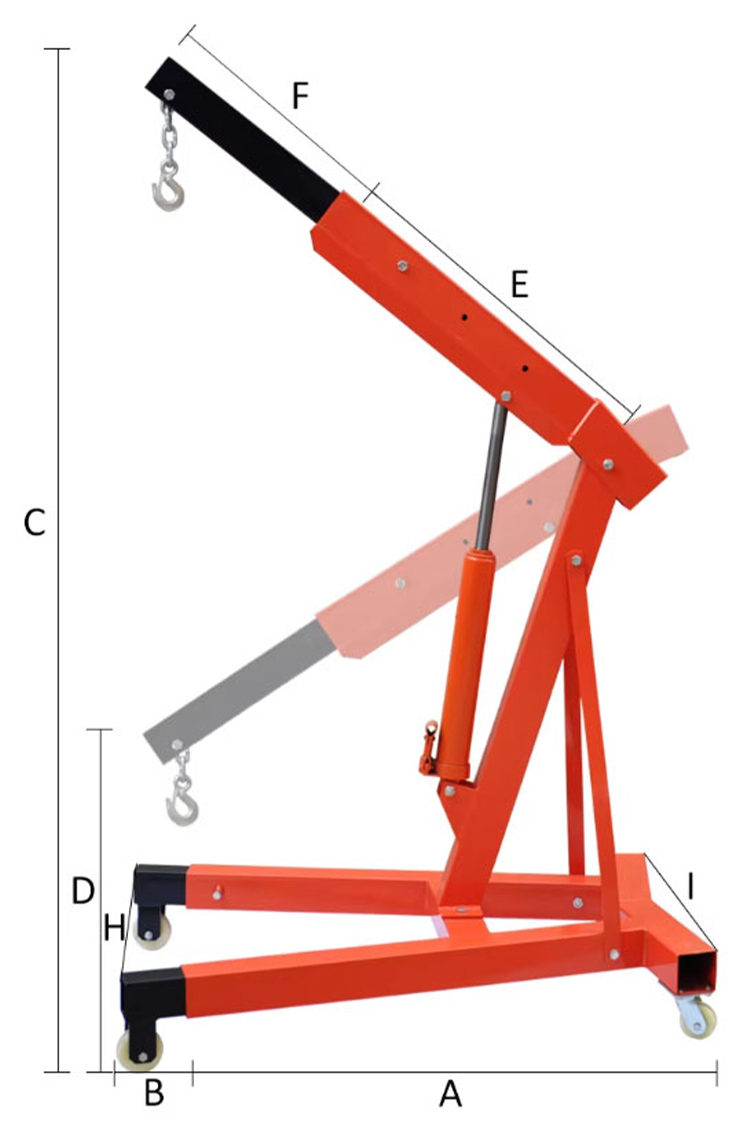

Product parameters

Folding Hydraulic Engine Crane Operation Procedures

Before using the folding hydraulic engine crane, make sure the ground is flat and solid; unfold the crane and lock the locking pins; check the hydraulic oil level and whether there is any leakage in the oil pipes; ensure that the wheel brakes are in good working condition; confirm the rated tonnage of the crane and strictly prohibit overloading.

Lifting and Trial Lifting: Push the folding hydraulic engine crane directly above the center of gravity of the object to be lifted and lock the wheels. Secure the lifting gear to the designated lifting point, and perform a trial lift of the load off the ground to check the balance, stability, and safety of the lifting gear. If there are no abnormalities, then proceed with the formal lifting operation.

Smooth operation: Use a steady and uniform pressure on the handle to lift the heavy object; do not press suddenly. When moving, first lower the object to the lowest safe height, then push it at a low speed. At all times, it is strictly prohibited for anyone to stand under the suspended object.

Loading and resetting: Slowly rotate the pressure relief valve to control the descent speed. The lifting equipment can only be disassembled after the load has safely landed. After the operation is completed, retract the boom, fold the crane, and restore it to its original position after inspection and maintenance.

Folding hydraulic engine cranes are easy to operate, have a large load capacity, are easily moved by hand, and require no power supply. Hebei Shengyu Lifting Equipment Manufacturing Factory's engine cranes support customization of different sizes. Contact us at 15133220073 (WeChat available), or email sherry@syhoist.com. Inquiries are welcome anytime.
