Little King Kong Electric Hoist

As a leading manufacturer and developer of lifting machinery products, Shengyu's little king kong electric hoist is a cost-effective product in the field of wire rope electric hoists, thanks to its lightweight design, safety performance and multi-functional application scenarios.

Send Inquiry

Product Description

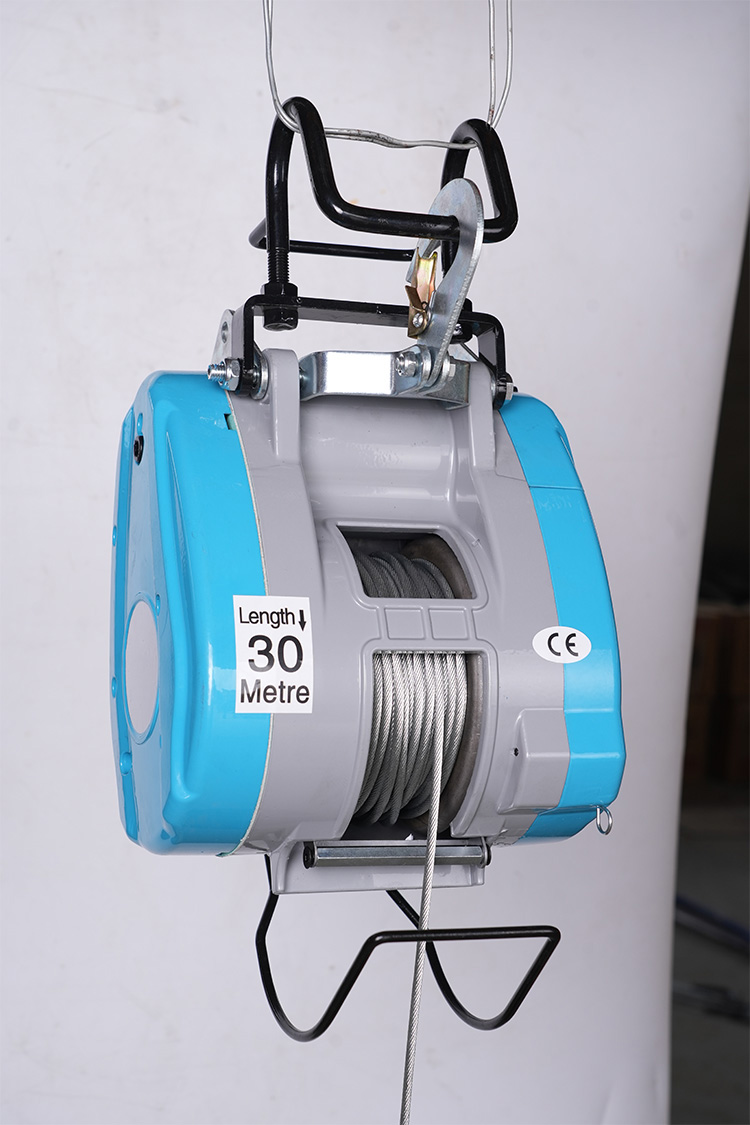

The little king kong electric hoist is a kind of light and small lifting equipment, which is widely used in industries such as industry, construction, warehousing and logistics. It has the characteristics of small volume, light weight, simple operation, safety and reliability.

The little king kong electric hoist is equipped with three major devices: the overwinding prevention device, the reverse rotation prevention device and the double safety braking device. These devices can automatically cut off the power when the steel cable is wound to the upper limit and automatically cut off the power when the reverse rotation occurs. In addition, its double braking device provides a guarantee for braking safety.

Product features

● The little king kong electric hoist adopts pure copper motor for strong power and excellent heat dissipation. Equipped with imported carbon brushes to ensure stable operation at high power, enabling long-term continuous operation without motor burnout, especially suitable for high-intensity work requirements.

● Through the collaborative design of manganese steel gear sets and the optimized lubrication system, a dual improvement in transmission efficiency and durability is achieved.

● Integrated aluminum alloy shell.

● Reasonable circuit guarantee and strong heat dissipation function ensure that the motor does not get hot easily during long-term operation, has a longer service life and higher efficiency

● Adopts a thickened aluminum shell, with abundant materials, which is shockproof and durable.

●The little king kong electric hoist equipped with a high-strength safety hook, which can withstand accidental overload impact without breaking.

●For the upgraded model：Equipped with permanent magnet brushless maglev motor，extremely powerful

Product details

Product parameters

Model	Rated Load(kg)	Motor Power(w)	Rope Dia.(mm)	Lifting Speed(m)	N.W/G.W(kg)
180kg	180	1600	5	6-25m/min	≈17/22
250kg	250	1800	5	6-25m/min	≈17/22
300kg	300	2000	5	6-25m/min	≈17/22
360kg	360	2400	5	5-18m/min	≈17/22
500kg	500	2800	5	5-18m/min	≈17/22

Little king kong electric hoists have successfully covered industrial, household and commercial fields through lightweight design, dual safety systems and multi-functional application scenarios. Welcome to consult us to obtain more products and product information.
