Mobile Electric Lifting Platform Vehicle

The mobile electric lifting platform vehicle demonstrates quality in its details and is equipped with an overload protection device to effectively prevent damage from overloading.

1.High-temperature baked enamel countertop, corrosion-resistant and anti-aging, significantly improved load-bearing capacity, not easily deformed or peeling.

2.High-strength UP wheels are wear-resistant, providing smooth and quiet pushing without disturbing neighbors; the rear wheel has a built-in brake device for precise positioning and stable locking.

3.The carbon steel rollers are precision machined and feature an internal lubricated bushing design, ensuring smooth, jam-free rotation, effectively reducing wear and extending service life.

Product Advantages

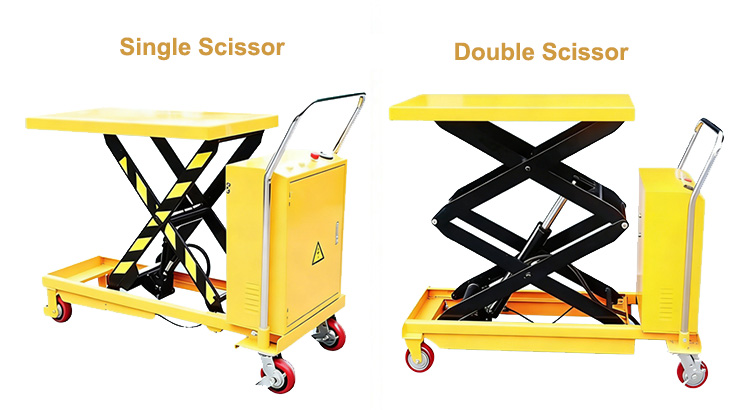

1.Scissor lift mechanism

The mobile electric lifting platform vehicle high-strength alloy steel scissor arms, which are structurally stable and have strong resistance to deformation. The lifting process is smooth and undisturbed. The double scissor structure design allows for a larger lifting stroke, meeting the needs of different height operations.

2. Electric Hydraulic Drive System

This lifting platform is powered by an electric hydraulic drive system. It is equipped with a silent hydraulic power unit, allowing for one-button operation for lifting. There is no need for manual pressure application. It is easy to operate and saves effort during work, effectively reducing the burden on human labor. The entire hydraulic system is equipped with safety protection configurations, including overload protection and anti-fall locking functions. Even if the power suddenly cuts off, the platform can securely lock in place without falling.

3. Movement and Control Design

The walking wheels of the equipment are designed to handle both steering and fixation. The universal wheels are equipped with brakes, allowing for smooth movement and stable parking. They can navigate smoothly in narrow spaces such as workshops and warehouses. Once parked, they automatically lock to prevent sliding or shifting. The operation panel is simple and intuitive in layout, with the up and down control buttons and emergency stop buttons grouped together, allowing for easy operation with one hand.

4. Safe and durable design

The platform surface has anti-slip treatment, making it less likely for the goods to slide off when placed on it. This makes the use more stable. At the same time, it is equipped with height limit protection. Once it reaches the limited height, it will automatically stop, preventing damage to the equipment due to excessive use. The whole design is sturdy, durable, and highly safe.

Product parameters

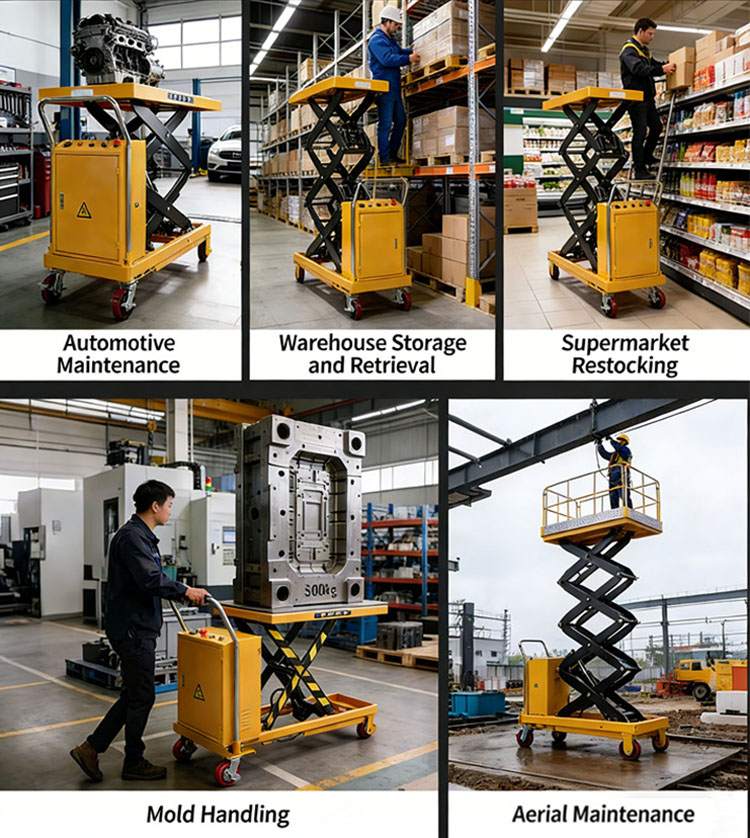

Application

FAQ

Q1: What are the uses of the mobile electric lifting platform vehicle?

A: Our mobile electric lifting platform vehicle is specially designed for short-distance transportation indoors and outdoors and height adjustment. It is widely used in warehouse goods handling, factory assembly, building maintenance, greenhouse operations, and equipment installation, etc. It can safely and flexibly lift goods or operators to the working height.

Q2: Is this lifting platform fully electric-driven?

A: Yes. It uses electric movement and electric lifting. It has low noise, zero emissions, and is flexible to operate. Compared with manual mobile forklifts, it can save the labor intensity of pushing and pulling.

Q3: What is the maximum load capacity and lifting height?

A: We offer various specifications. The common load range is 300 kilograms to 1000 kilograms, and the maximum lifting height is 0.3 meters to 1.7 meters. Please contact our customer service to obtain the detailed parameter table that suits your work needs.

Q4: Can it be used on rough or sloping terrain?

A: This equipment is most suitable for flat and solid ground. For slightly uneven ground, we adopt a heavy-duty wheel design to improve the passability. However, it is not recommended for steep slopes, soft mud ground, or severely bumpy areas to ensure safe operation.

Q5: How long can the battery last in full charge?

A: Under normal working conditions, in full charge, it can operate continuously for 4 to 6 hours. Battery life depends on the load weight and lifting frequency. We also provide backup battery options.

Hebei Shengyu Lifting Machinery Equipment Co., Ltd. supports customization of various models of mobile electric lifting platform vehicles. For detailed quotations, customization solutions, or product samples, please call 15133220073 or email sherry@syhoist.com. Feel free to contact us anytime!
