Hand Cranked Lifting Tripod

Hebei Shengyu Lifting Equipment Manufacturer's hand cranked lifting tripod, equipped with a hand-cranked winch, is easy to operate and requires no power supply. It can be used anywhere, maximizing portability. Shengyu lifting tripods use thickened materials, have a compact structure, and a large load-bearing capacity, capable of lifting 1 ton or 5 tons of weight, realizing the advantage of a small product with a big impact.

Send Inquiry

Product Description

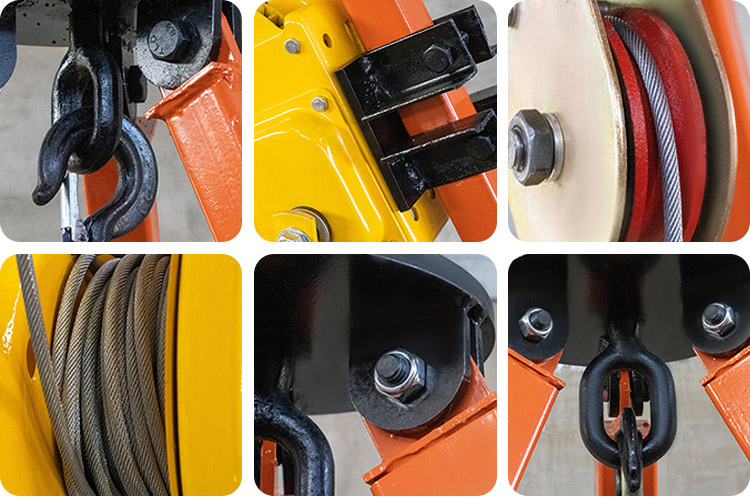

Product Details

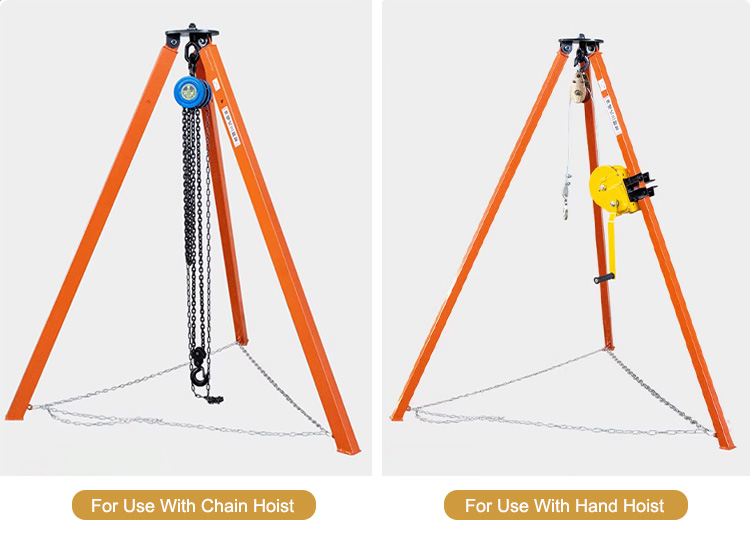

1. The lifting tripod can be equipped with a hand-cranked winch or a chain hoist, depending on the user's needs;

2. Telescopic adjustment holes allow for flexible height adjustment, and it comes with 8.0 grade screws for easy height adjustment;

3. Thickened plates ensure stable connections, and high-strength screws provide secure locking;

4. Die-cast top load-bearing plate provides strong load-bearing capacity, high-density, thickened steel plate for enhanced tensile strength;

5. 360°rotating lifting rings allow for flexible rotation;

6.Chain-locked lifting rings ensure the legs of the hand cranked lifting tripod are secured by chains, making the lifting rings more stable and safer;

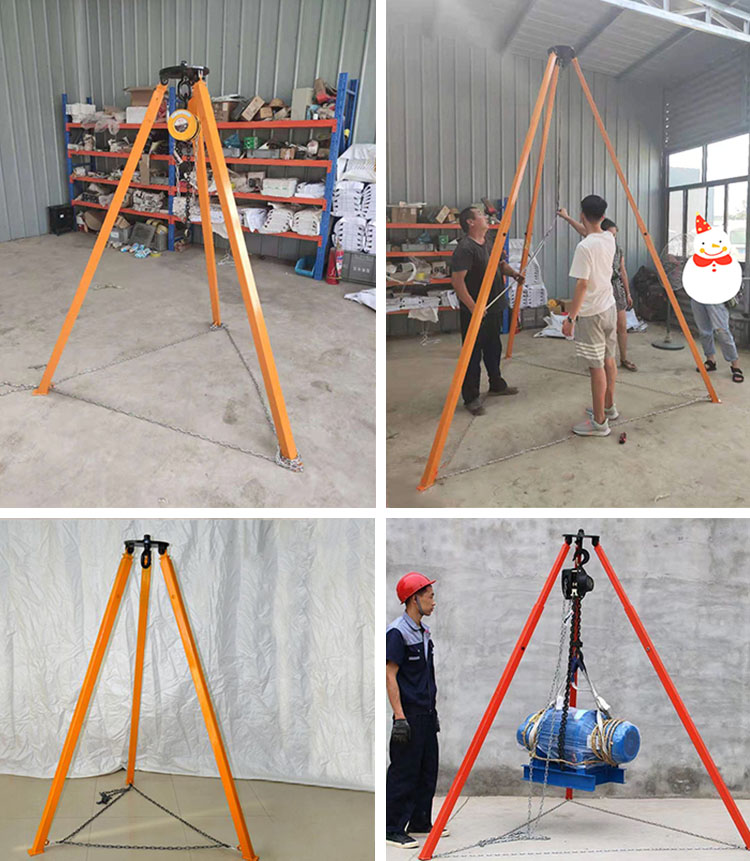

Hand Cranked Lifting Tripods

Features

1. Hand cranked lifting tripods have a lifting capacity of 1T, 2T, and 3T, with a standard lifting height of 3M, 3M, and 4M. Also known as telescopic tripods, these tripods are small, lightweight, compact, flexible in application, and easy to carry.

2. Tripods are widely used in factories, workshops, repair shops, warehouses, storage rooms, mines, and open-air and outdoor locations. They can be used with both manual and electric hoists.

3.Tripods are easy to install without the need for additional tools. The legs are adjustable in width and secured with through bolts. When installed, the height can range from 1.8 meters to 3 meters or 4 meters. Chains between the legs ensure stability.

Hand Cranked Lifting Tripod

Customization supported

1. Hand cranked lifting tripods can be customized in various colors according to user requirements. Customization is available for large orders.

2.The tripod can be customized to 4 meters or 5 meters in height. However, this is a custom-made product and will affect the load-bearing capacity. The load-bearing capacity is reduced by 25% for 4 meters and by 50% for 5 meters. Consultation with sales personnel is required before ordering.

Precautions

The telescopic tripod has a lifting ring in the middle of the top, allowing you to choose different manual or electric hoists for lifting operations depending on the actual situation. During operation, the bottom of the hand cranked lifting tripod is securely connected with a steel wire rope. Among various models of cranes, the lifting tripod is the most representative. The foldable structure design also allows this product to be moved to any location, and it can also be disassembled for convenient use by operators.

Hebei Shengyu Lifting Machinery Factory produces hand cranked lifting tripods that are sturdy, stable in load-bearing capacity, and easy to operate. They are suitable for various scenarios such as construction site hoisting, rescue, and equipment installation. The products are robust, durable, safe, and reliable. Customization of various specifications is supported. Direct supply from the factory with guaranteed after-sales service makes them a reliable and trustworthy helper for your lifting operations. Welcome to purchase and cooperate.
